Ply
This blade style baffle system features a birch plywood center blade that is clad with PET panels on both sides to offer a unique look with exceptional acoustics. The Ply baffle system has 3 patterns available to chose from including the standard, weave, and scale designs. Ply baffles have a fully adjustable uni-strut mounting system for groups of baffles under an open to deck ceiling. As an alternative to the uni-strut mounting system we also offer an aircraft cable suspension for more versatility in layout.
DOWNLOADS:
PRODUCT DETAILS:
- Acoustical
- Eco friendly
- Class A fire rated
- Impact resistant
- Low voc
- Mold and mildew resistant
HOW TO SPECIFY
-
Ritz Acoustics Ply Baffles
-
Specify as standard, weave, or scale
-
Standard - Height Varies 11”H X 1 3/4”W X 95” Max Length
Custom sizes available.
-
Choose from 77 Colorways please refer to our color chart located on this page.
-
Our standard mounting method is uni-strut as shown in the details on this page however certain designs and situations would be better suited for an aircraft cable suspension which is also available upon request.

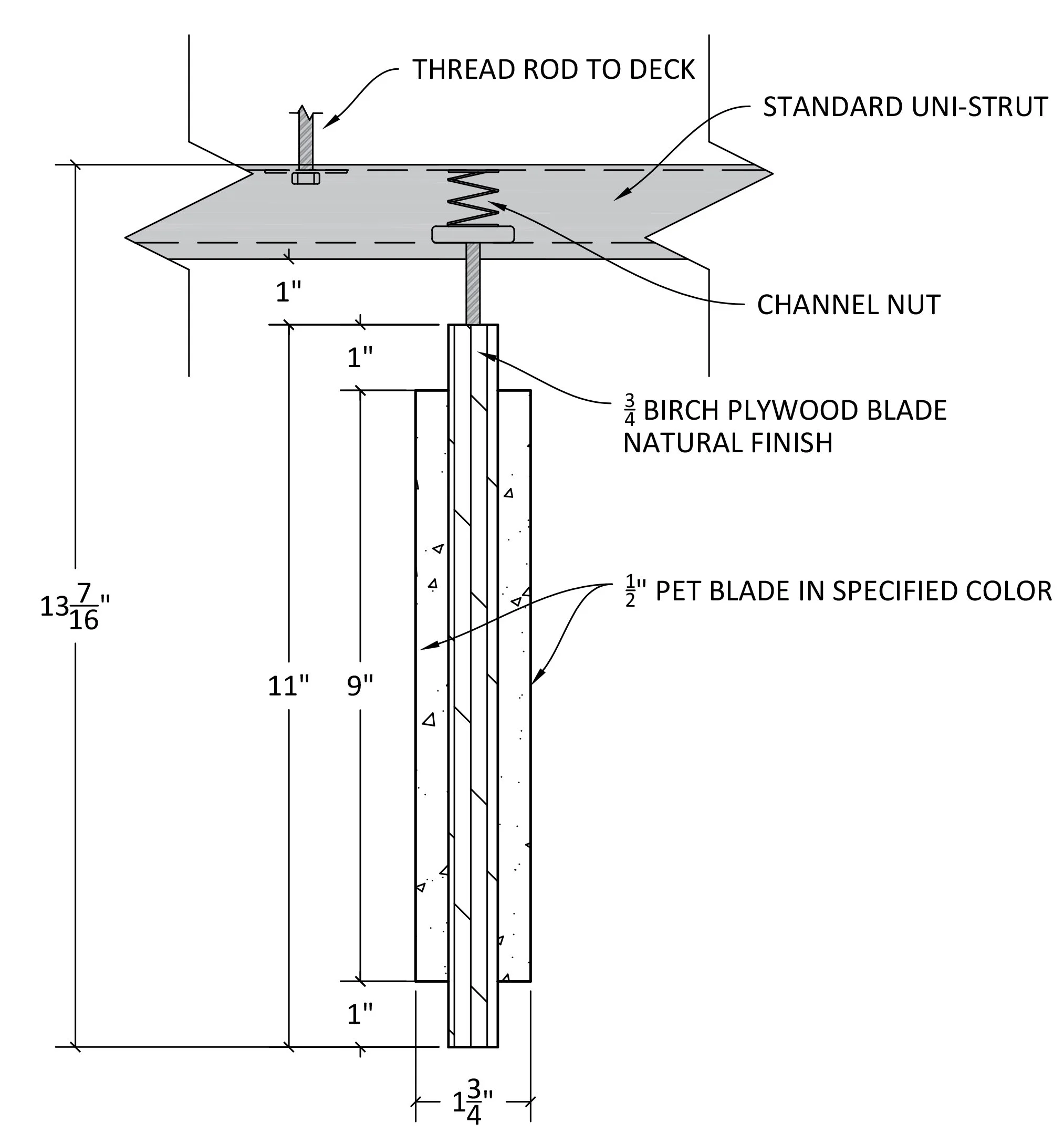

PLY BAFFLE SECTION

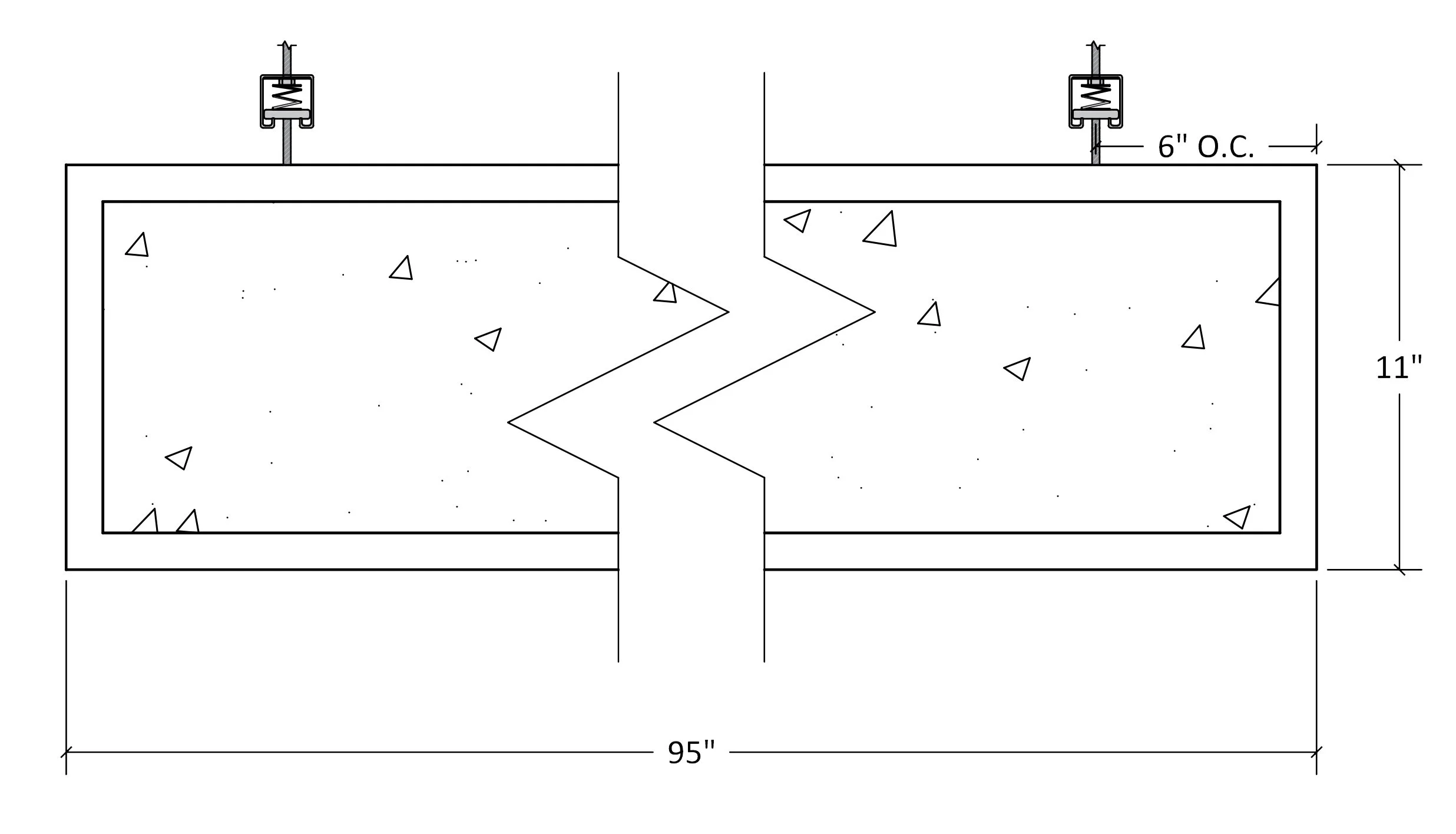

STANDARD ELEVATION

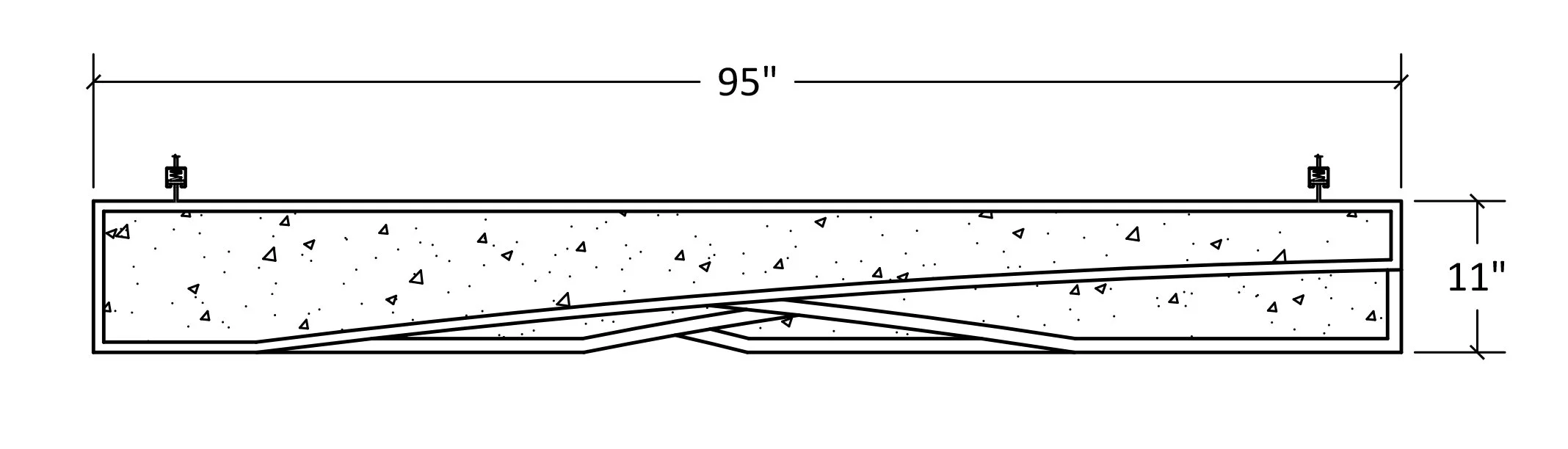

WEAVE ELEVATION

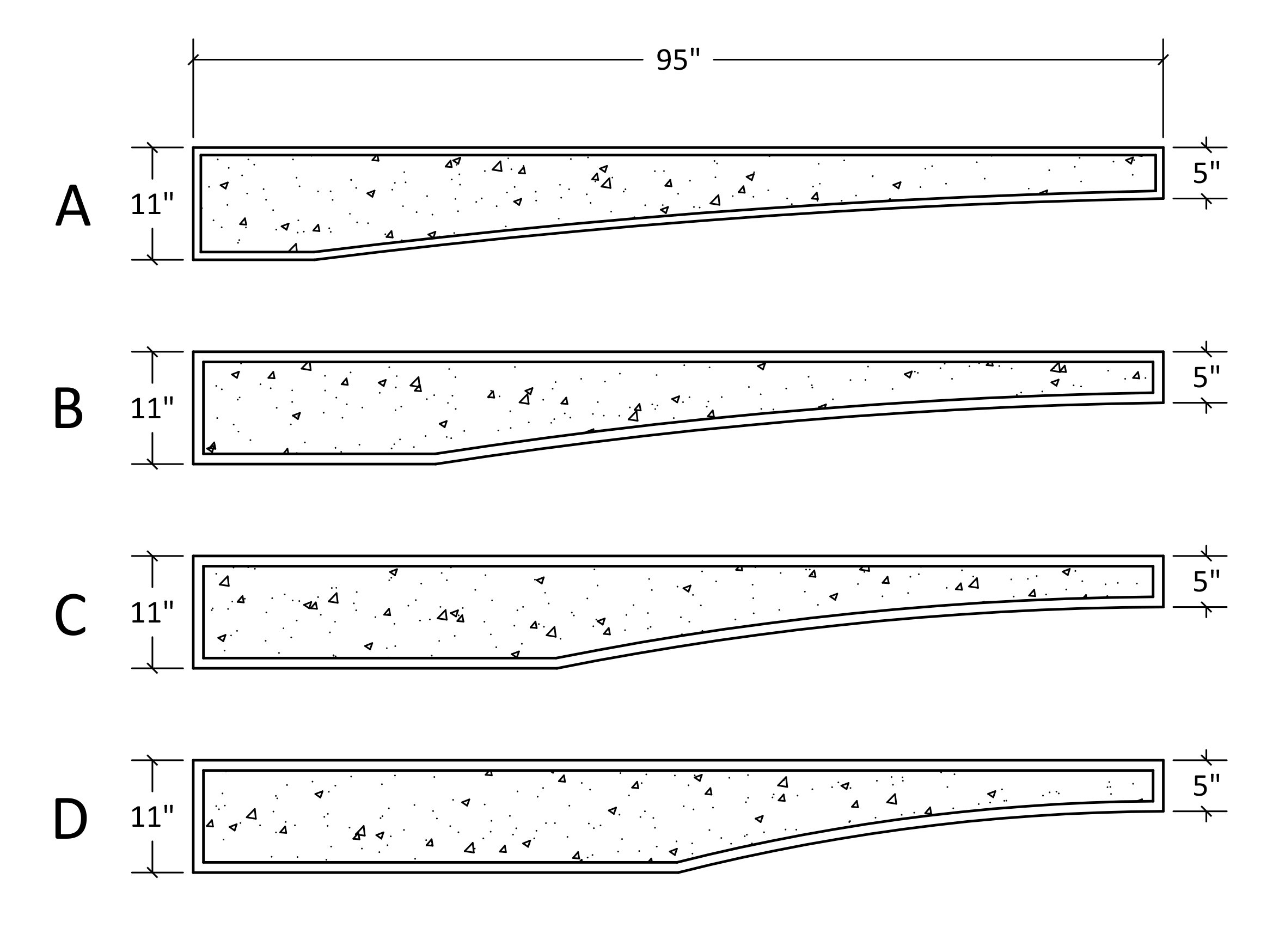

WEAVE PATTERN

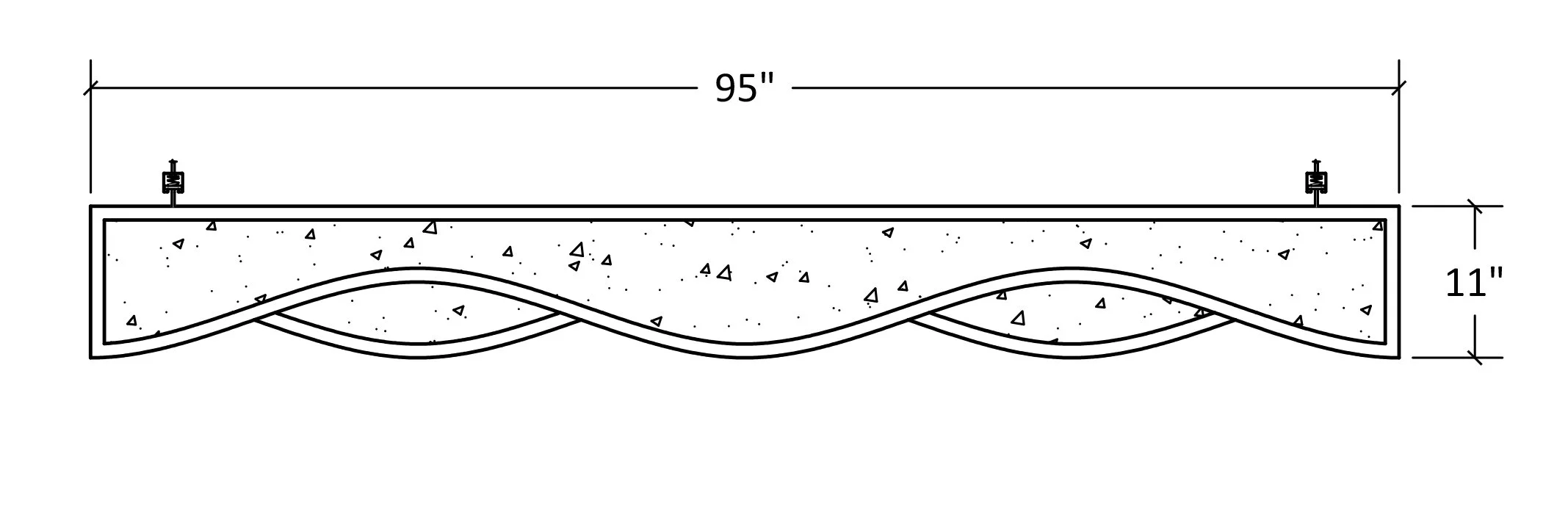

SCALE ELEVATION

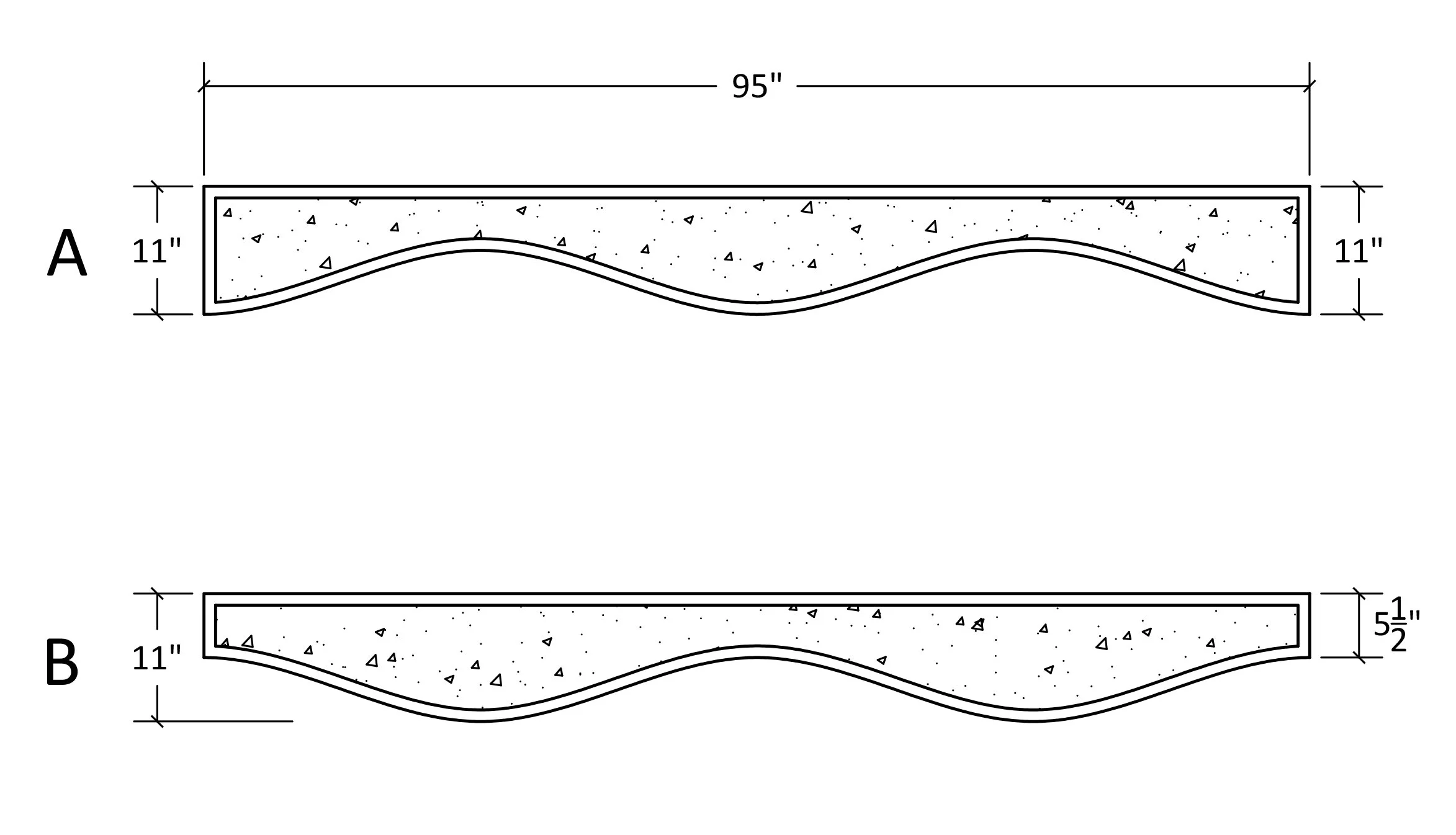

SCALE PATTERN
REQUEST A QUOTE
For existing construction projects, or help specifying our products on a new project we are here to help. Please reach out with your needs and goals. We can provide you with the right acoustic solution for your space, quickly and with straightforward pricing. Installation is also available in some regions.
RELATED PRODUCTS
U BEAMZ
TIMBERZ BAFFLEZ
V BAFFLEZ

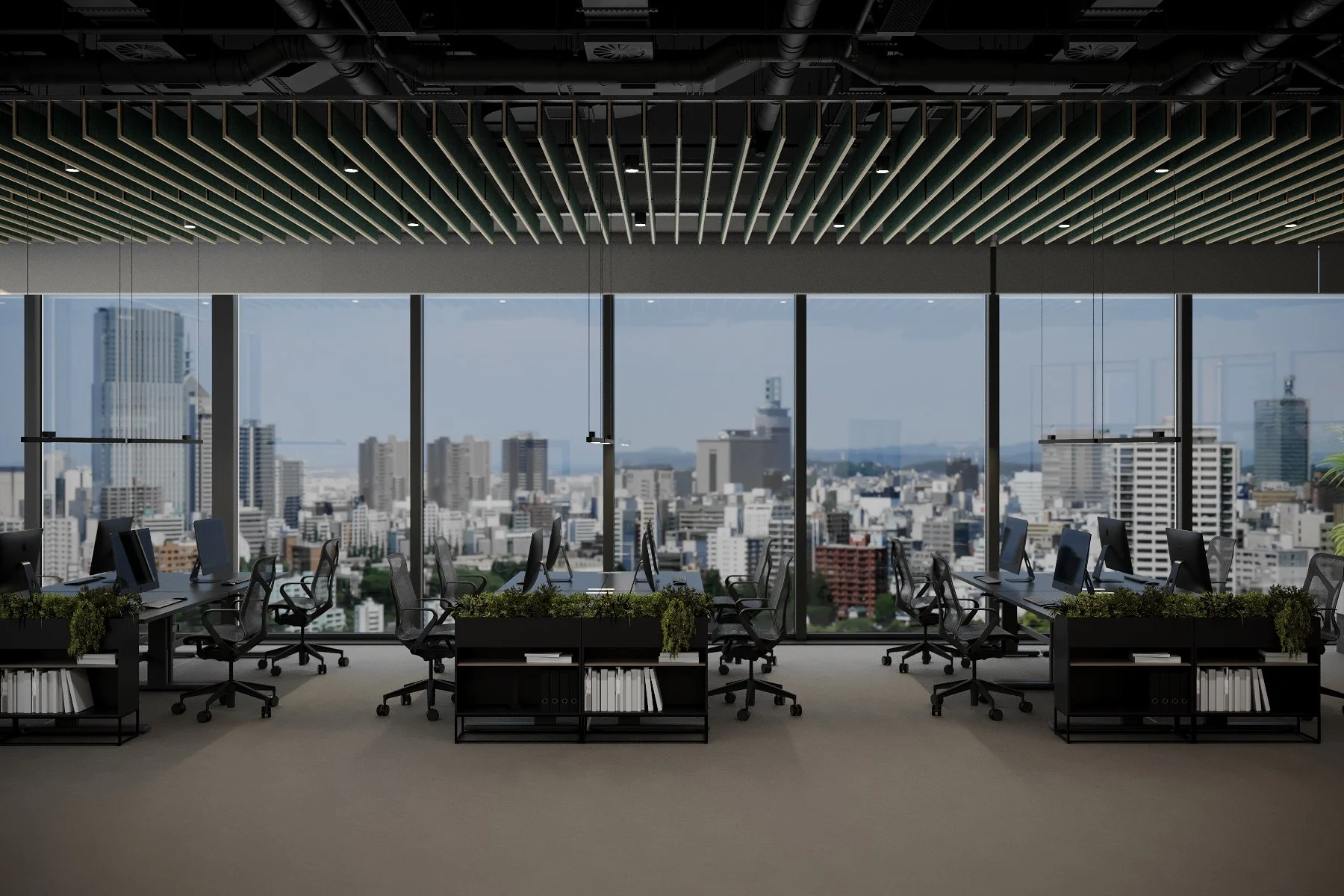

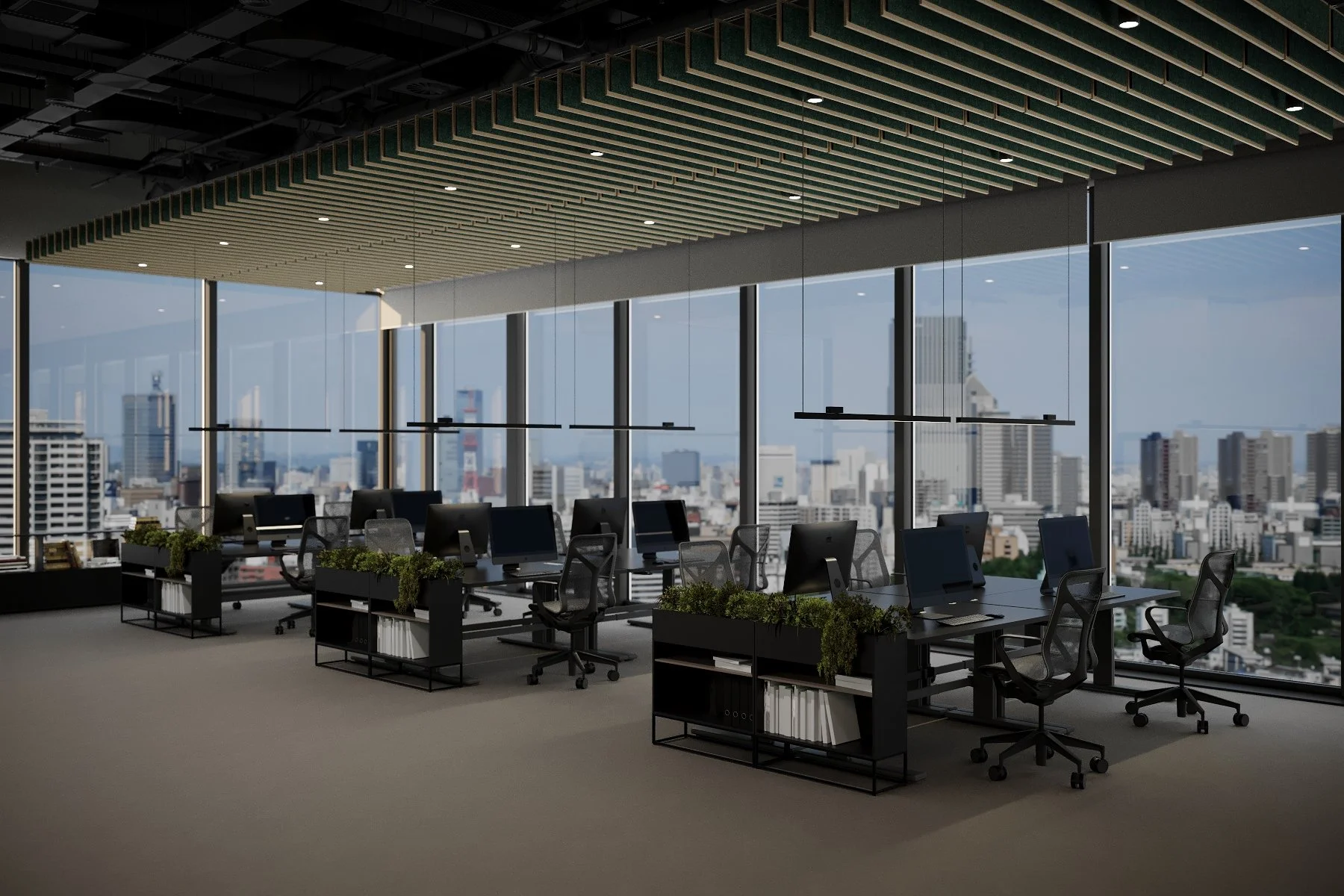

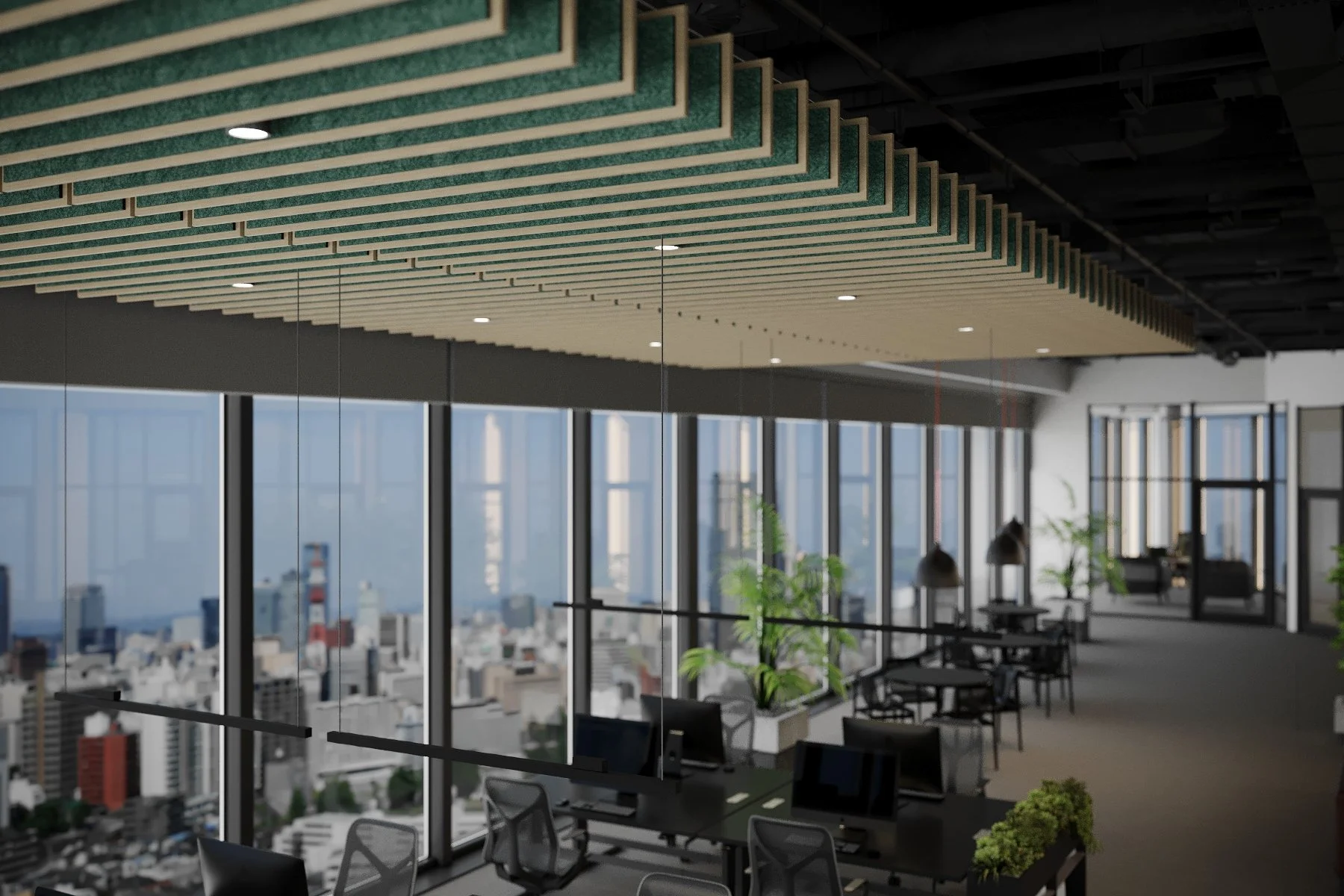

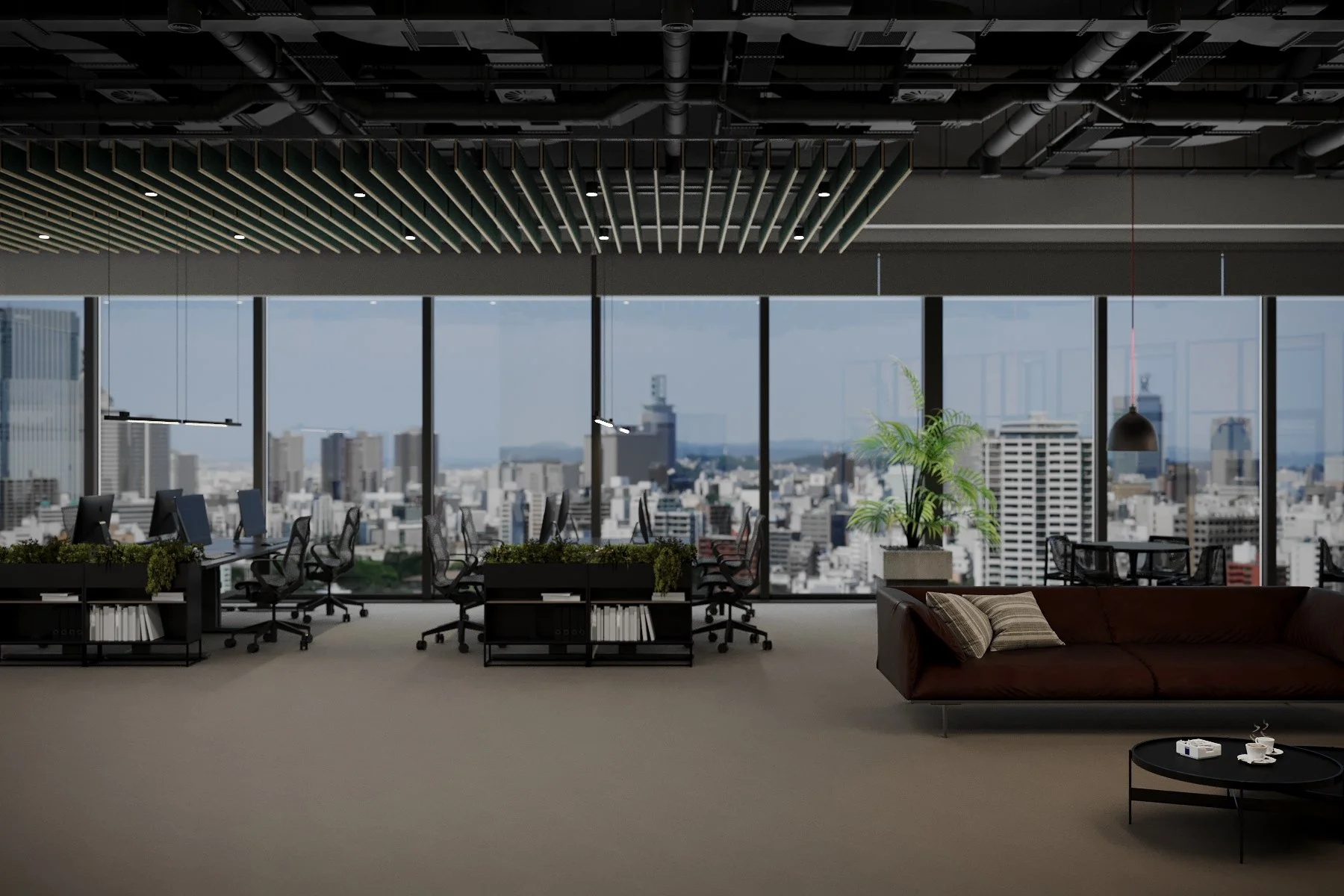

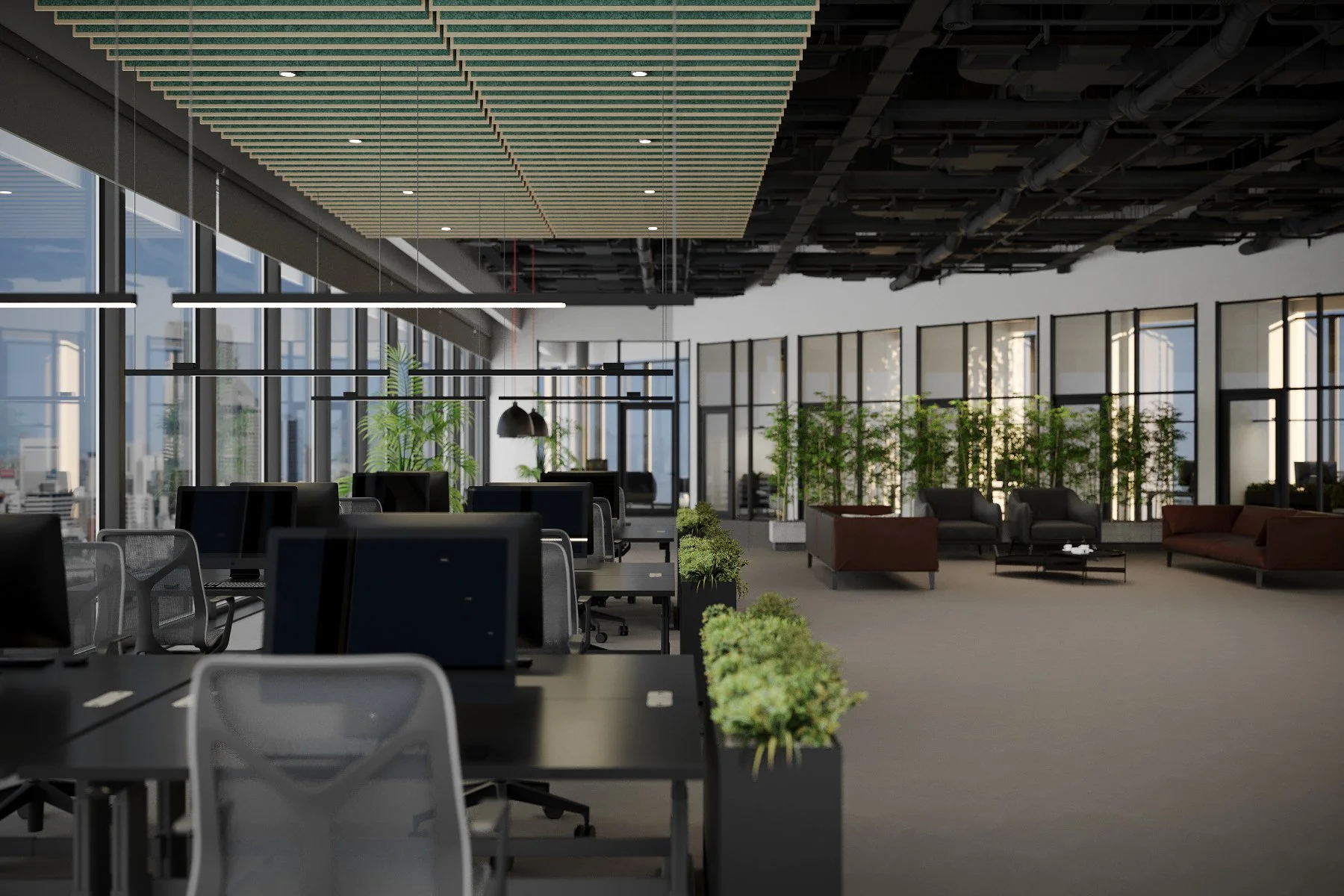

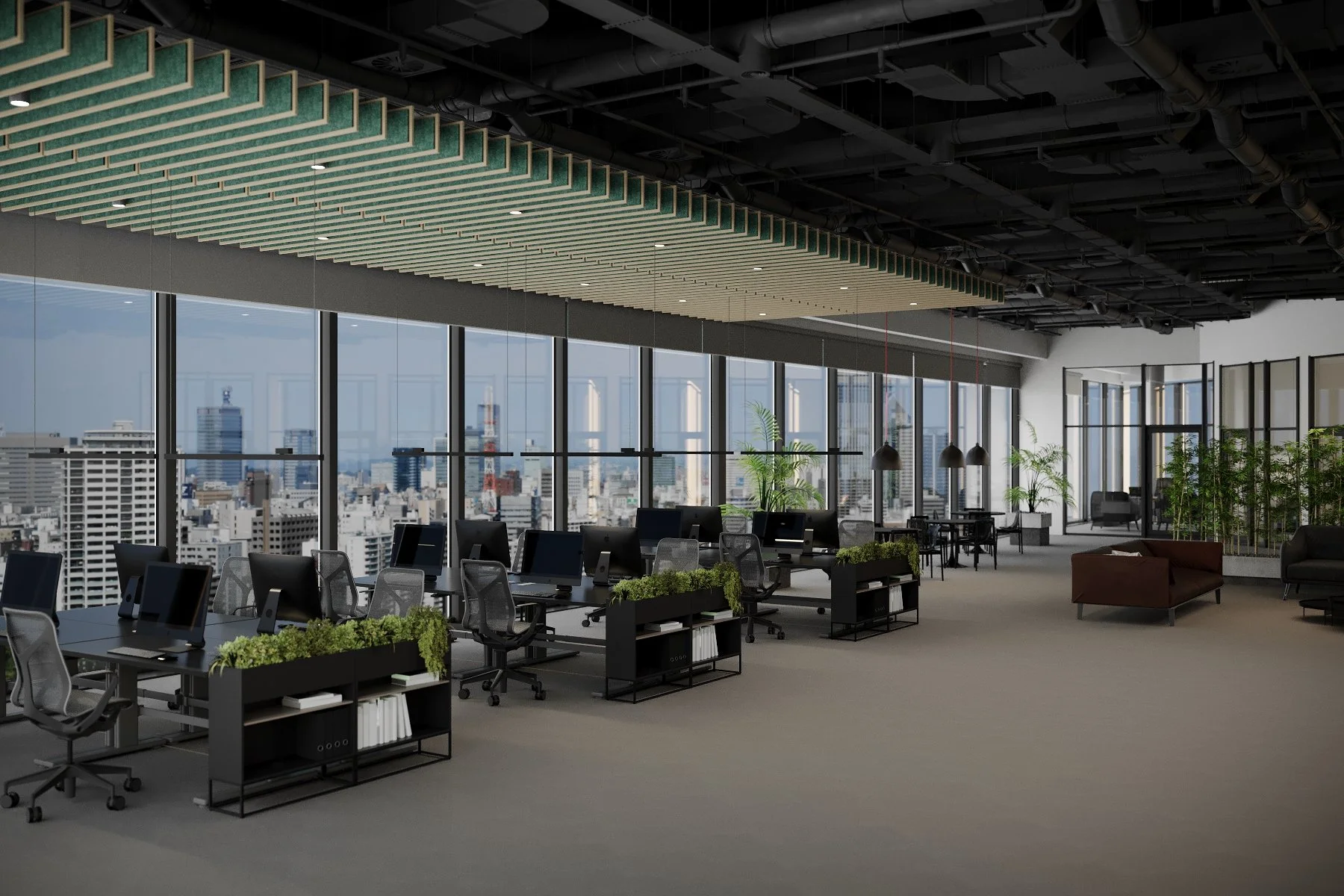

STANDARD RENDERINGS

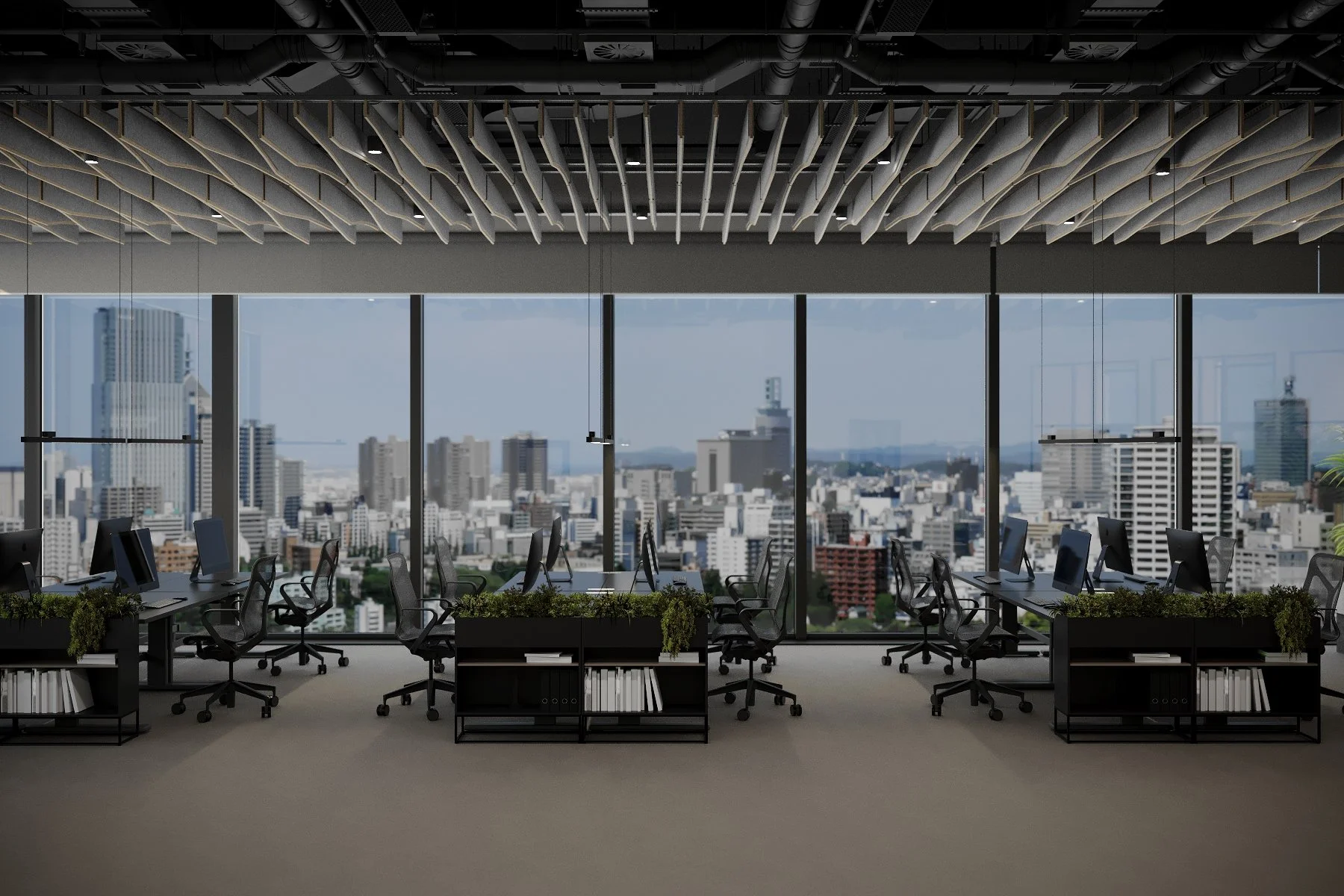

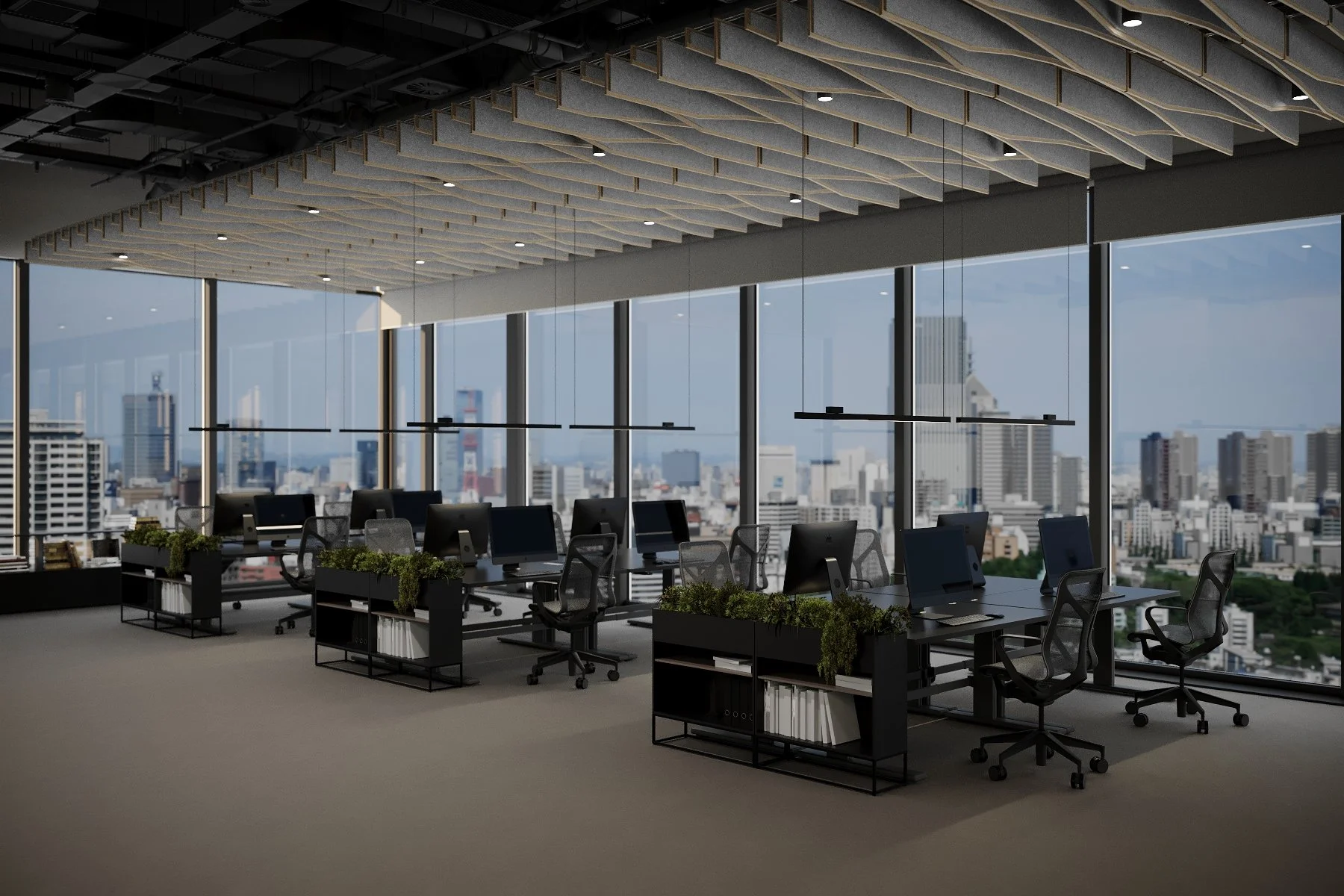

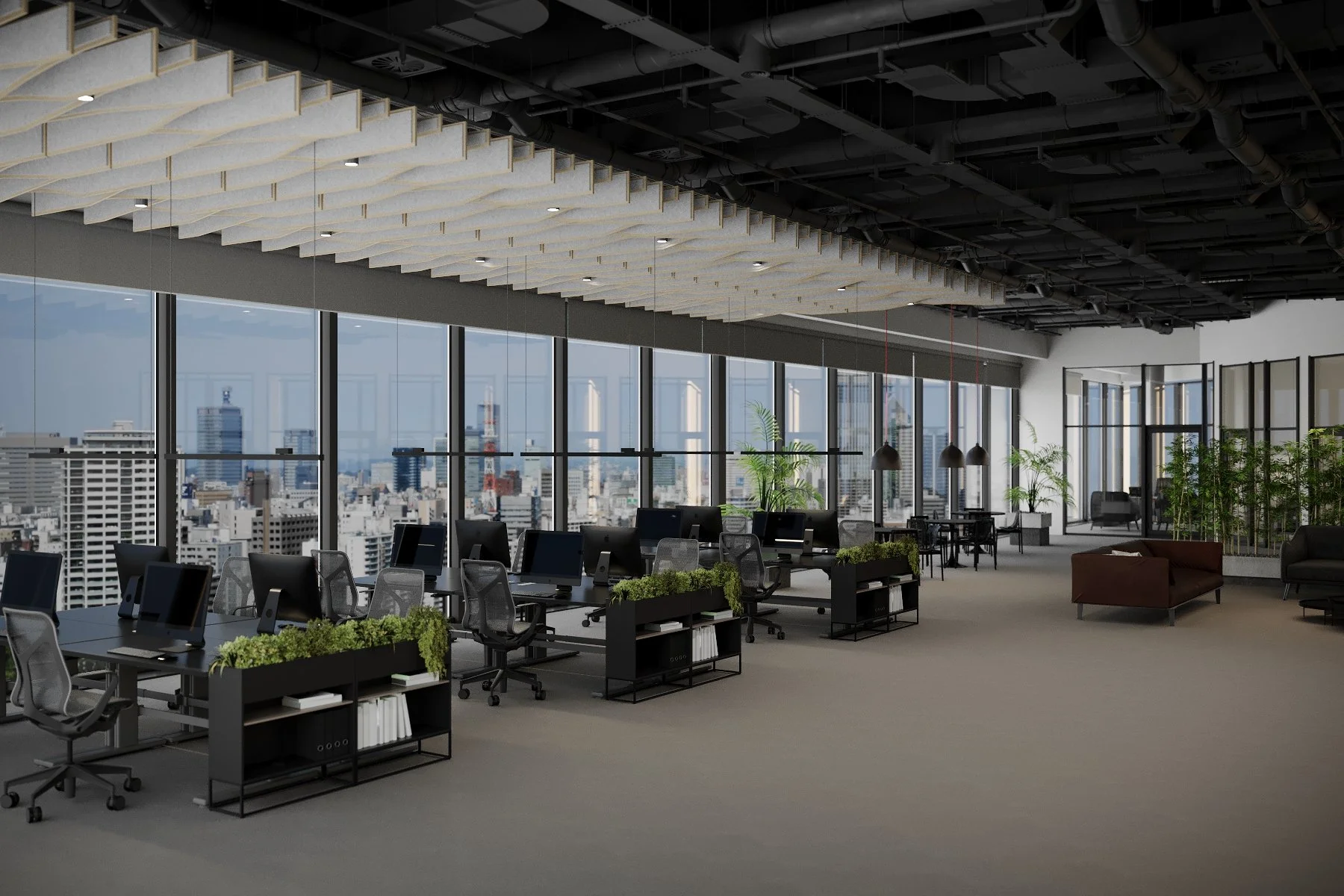

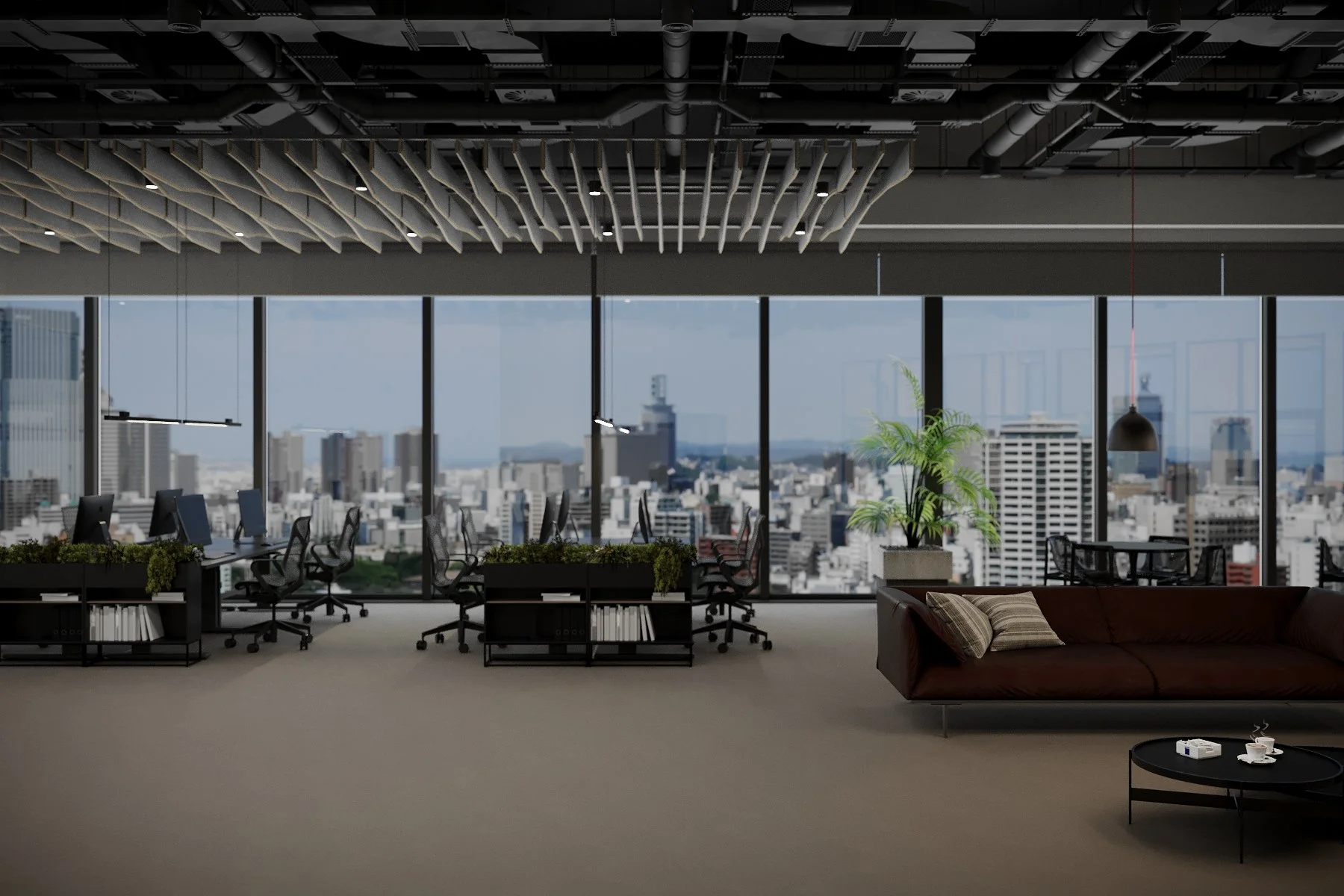

WEAVE RENDERINGS

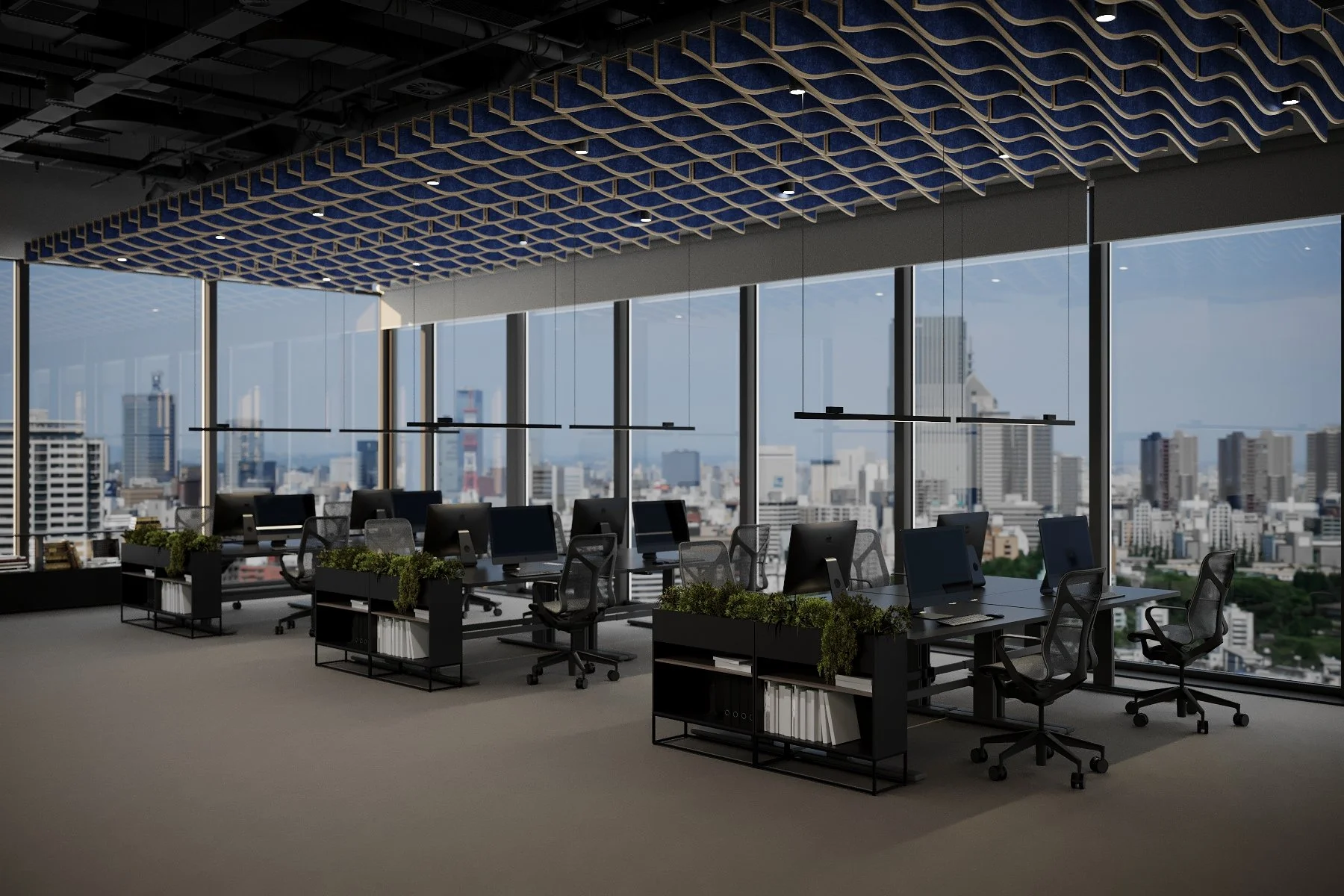

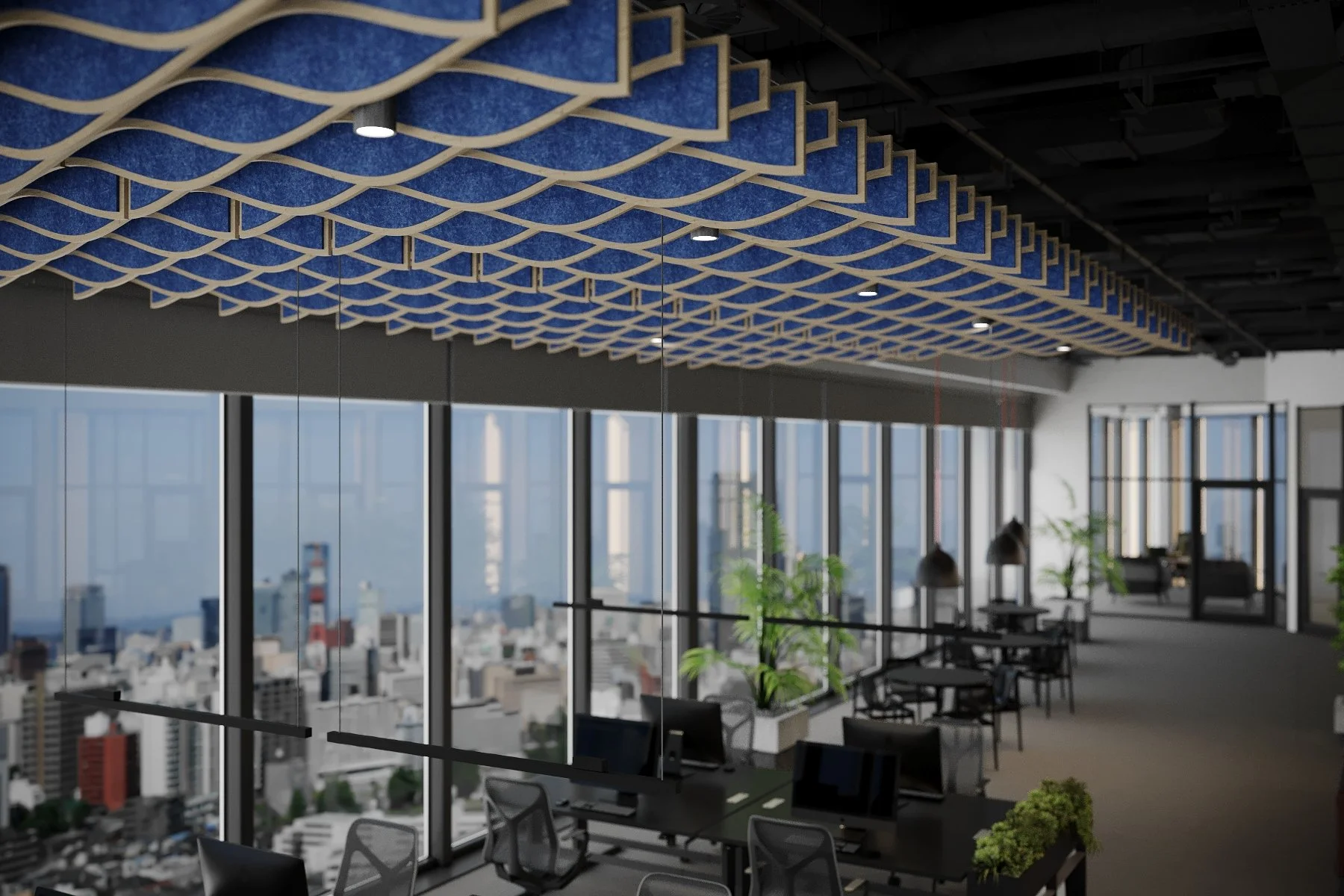

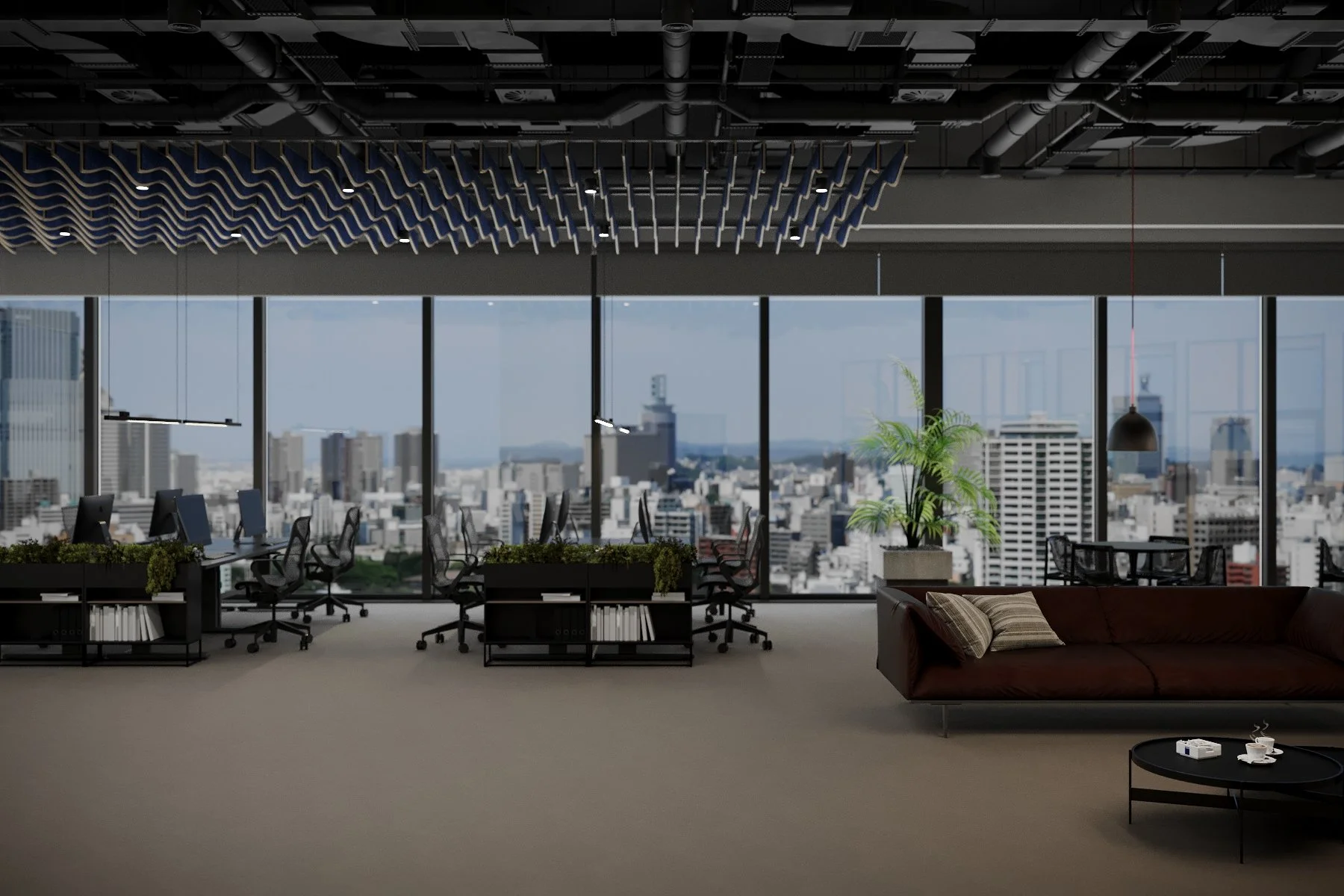

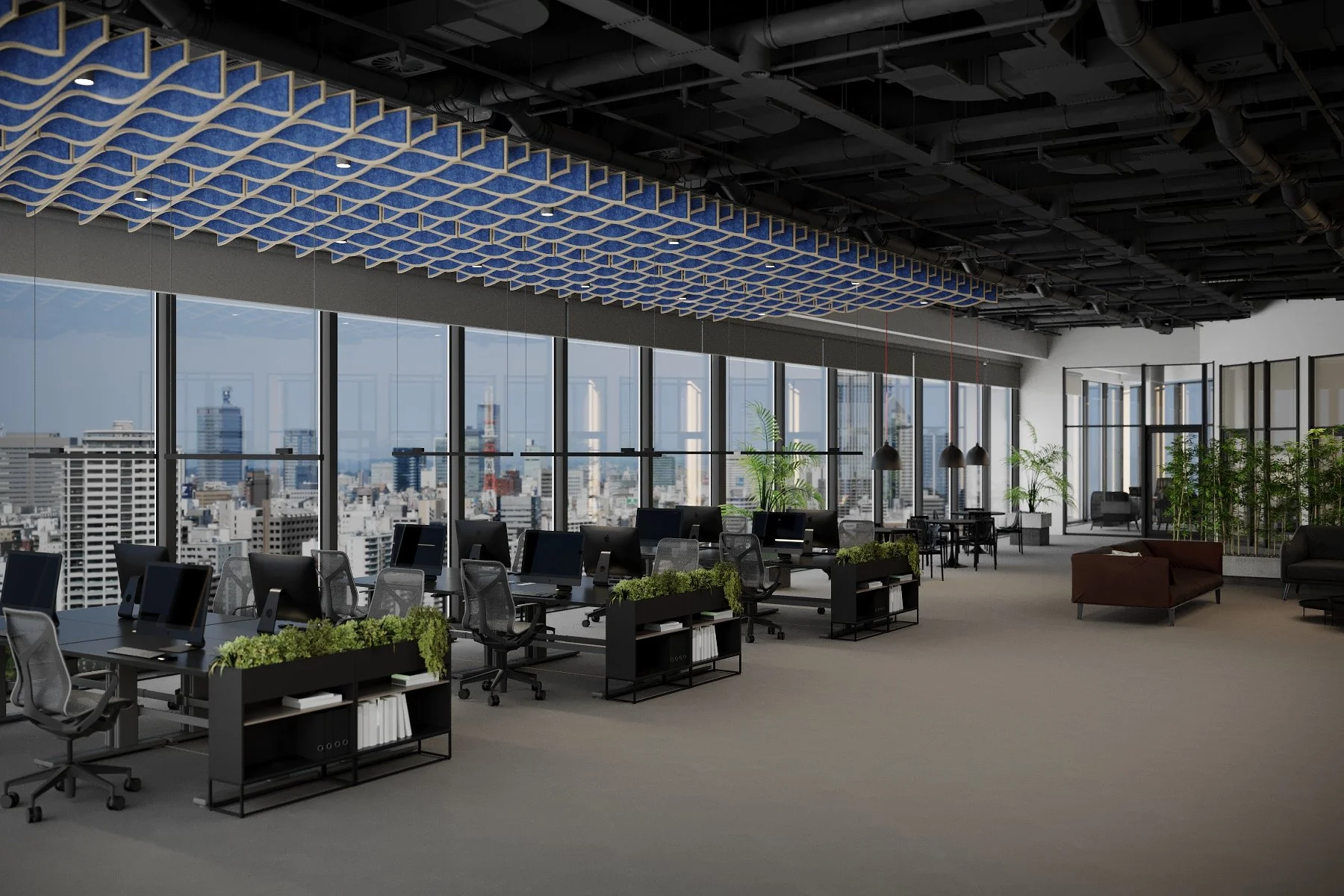

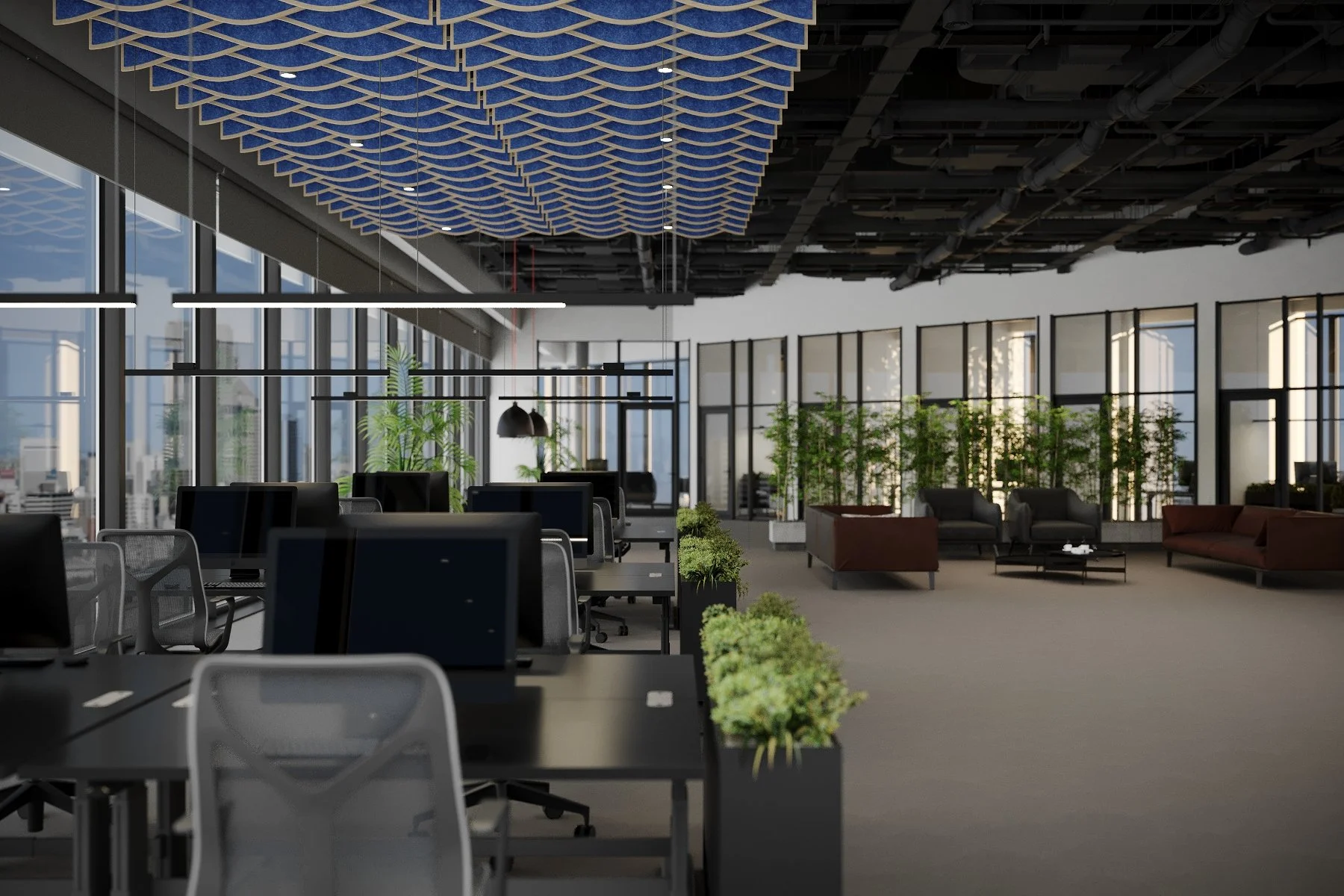

SCALE RENDERINGS
SUSTAINABILITY
Ritz Acoustics manufactures its products from polyester fiber acoustic panels it has sound absorbing, non-toxic, non-allergenic- and non-irritant charastitics It is a good choice for managing echo and creating a durable interior acoustic solution. These Polyester panels are produced from recycled bottles made of PET plastic so we often refer to our material as a PET felt. Due to its recycled nature these products are excellent to meet LEED standards and goals on your construction project.
