Grillz Ceiling Cloud
Rhythm, Densified
Grillz packs half-inch PET blades into a tight, rhythmic array — maximum acoustic surface in a minimal footprint. From below, the densely spaced blades read as a finely textured plane, almost fabric-like in its regularity.
Three blade profiles — Standard, Serene, and Jagged — tune the visual texture from orderly to expressive without changing the system. The blades' tight spacing creates a moiré of fine shadowlines that gives the cloud a crafted, detailed presence.
The density is the point, acoustically: more blade surface per square foot means more absorption per cloud, making Grillz the choice when the noise problem is serious and the ceiling area is limited.
Grillz proves that density can be elegant — that packing performance into a tight rhythm produces its own kind of beauty.
Ideal for open offices with high occupant density, restaurants, bars, fitness centers, and any loud, lively space that needs serious absorption without visual weight.
DOWNLOADS:
PRODUCT DETAILS:
- Acoustical
- Eco friendly
- Class A fire rated
- Impact resistant
- 100% polyester
- Low voc
- Mold and mildew resistant
HOW TO SPECIFY
-
Ritz Acoustics Grillz, two patterns available.
-Standard Pattern
-Serene Pattern -
Standard 1/2” Thick X 4-3/4”H X 95” Max Length
Custom Sizes Available
-
Choose from 77 Colorways please refer to our color chart located on this page.
-
Standard mounting method for Grillz is aircraft cable suspension.

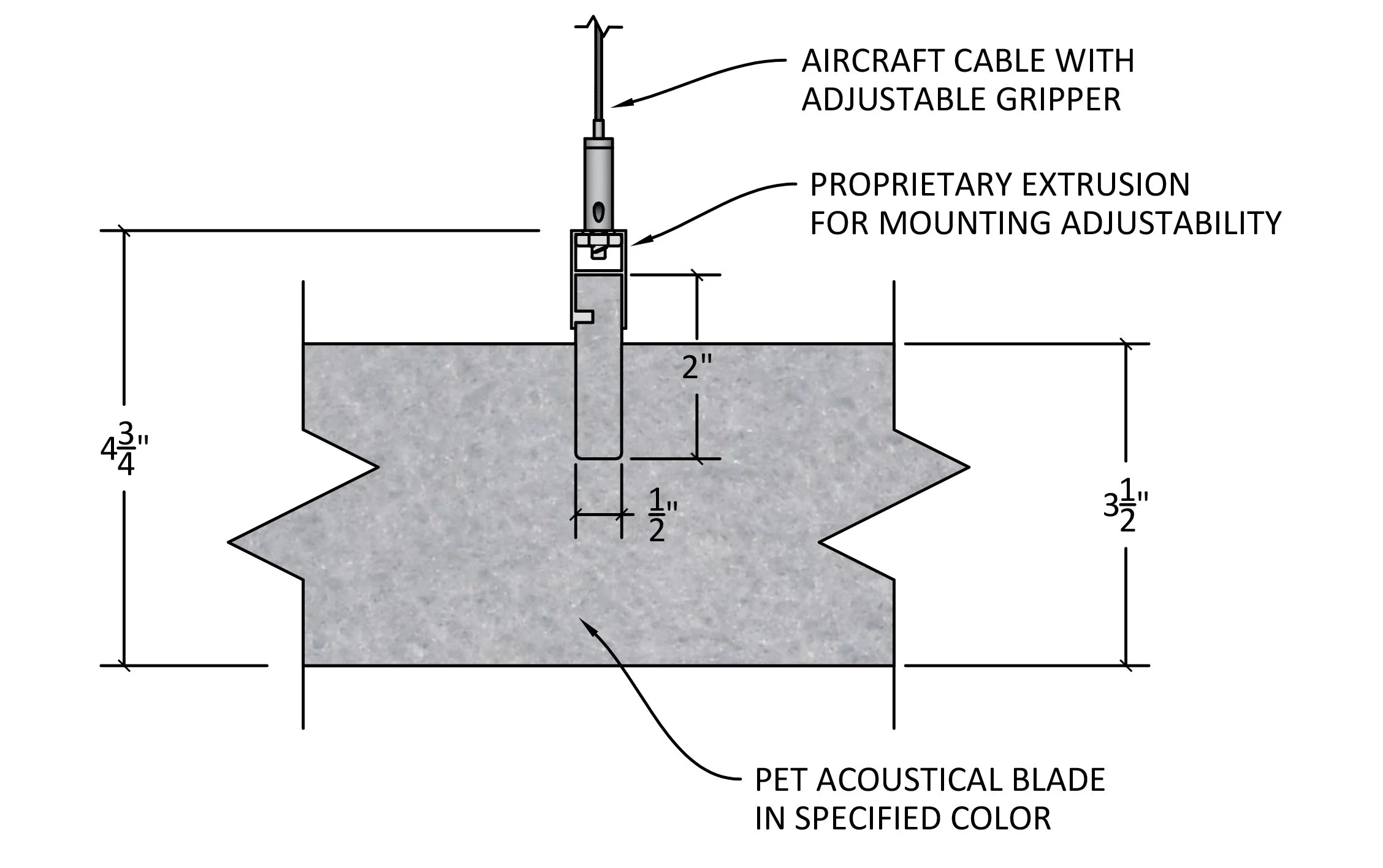

STANDARD GRILLZ SECTION

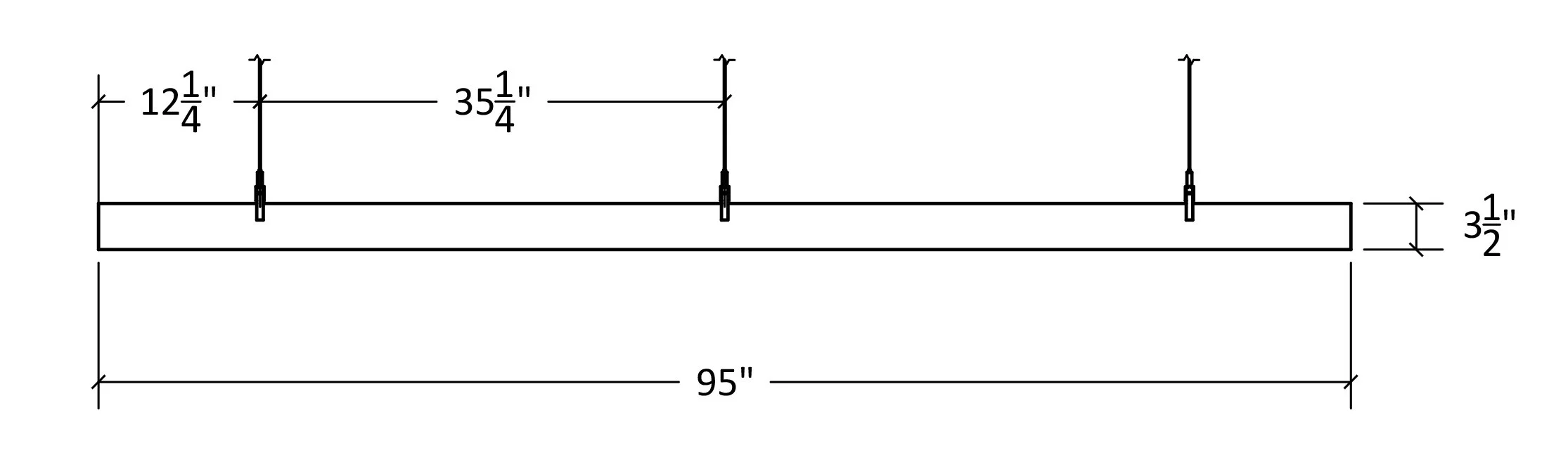

STANDARD GRILLZ FRONT ELEVATION

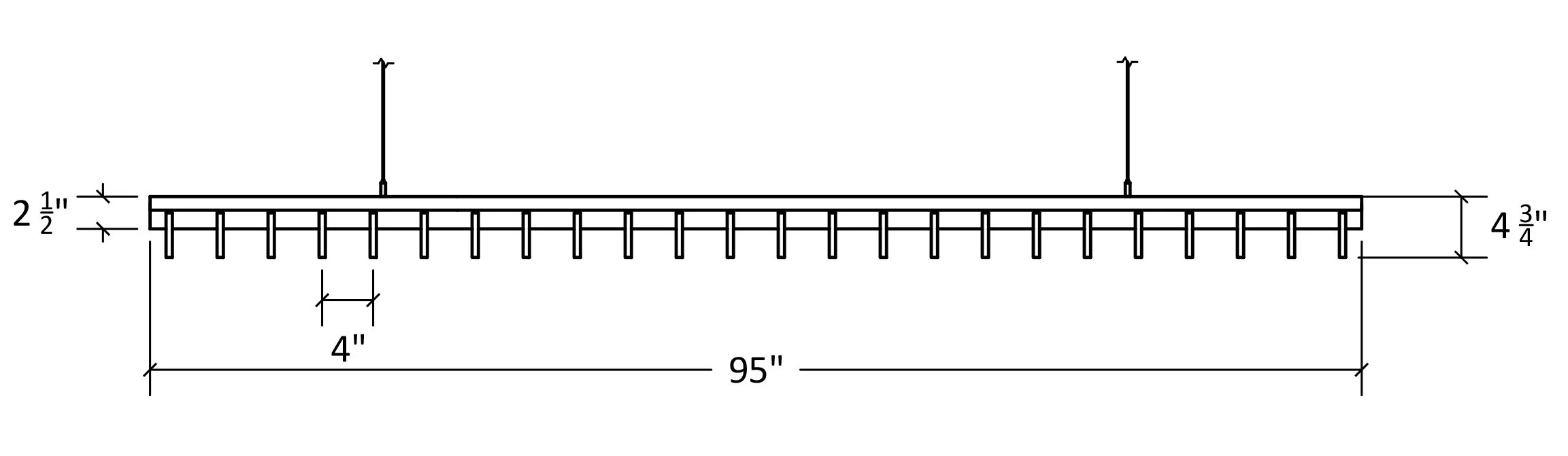

STANDARD GRILLZ SIDE ELEVATION

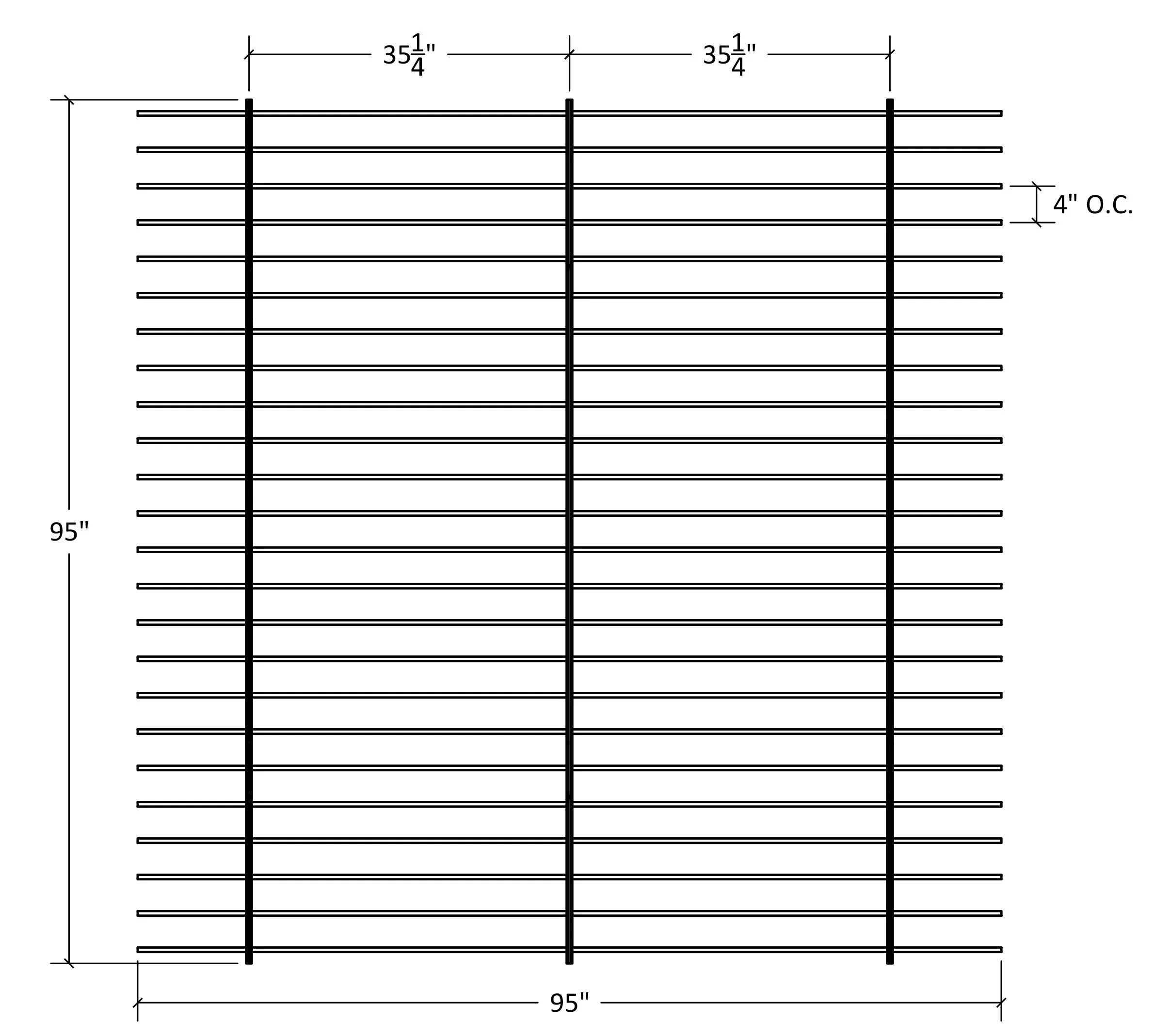

STANDARD GRILLZ PLAN
SERENE GRILLZ SECTION
SERENE GRILLZ FRONT ELEVATION
SERENE GRILLZ SIDE ELEVATION
SERENE GRILLZ PLAN

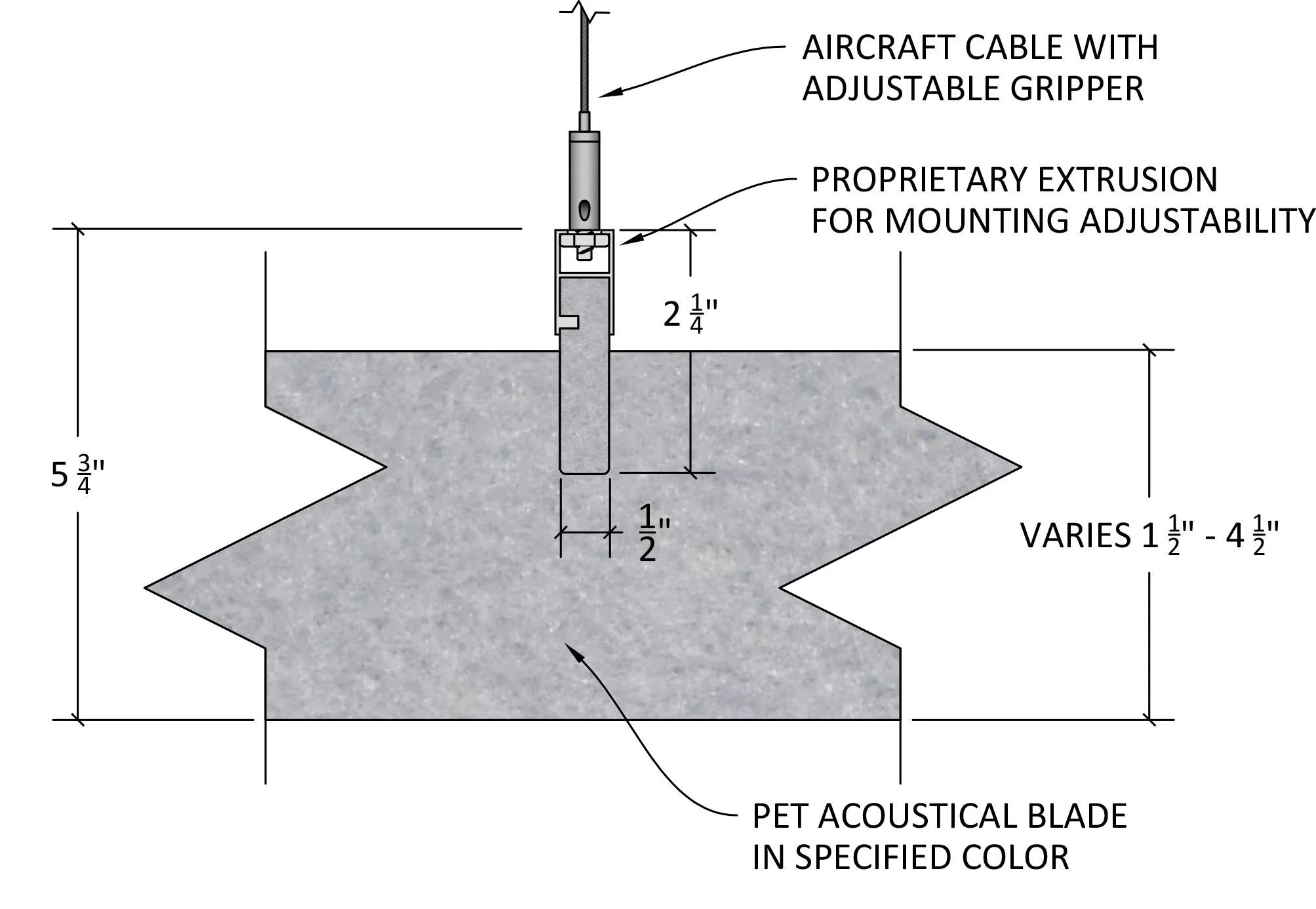

JAGGED GRILLZ SECTION

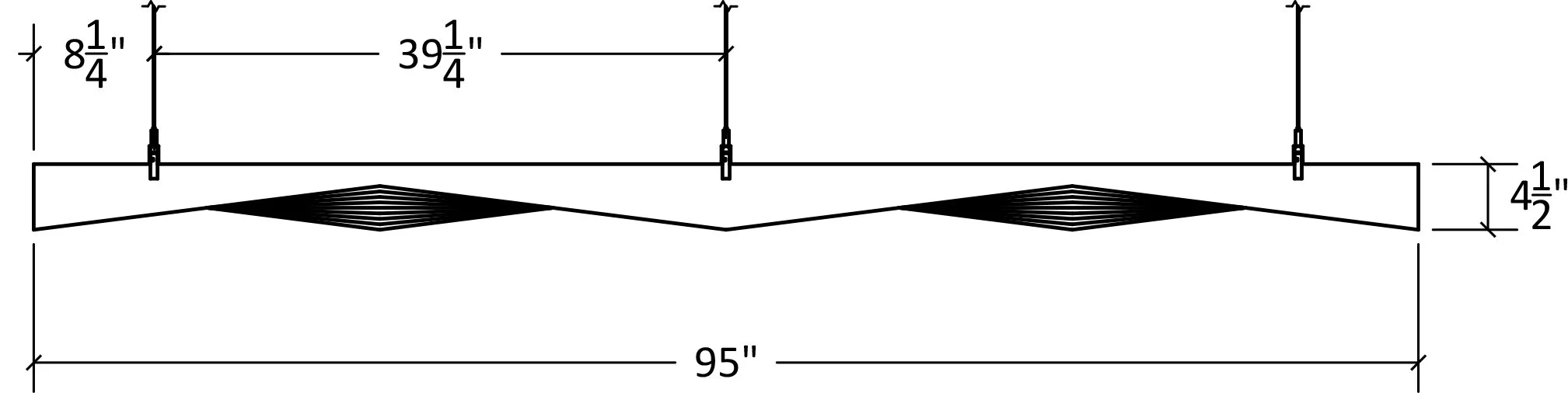

JAGGED GRILLZ FRONT ELEVATION

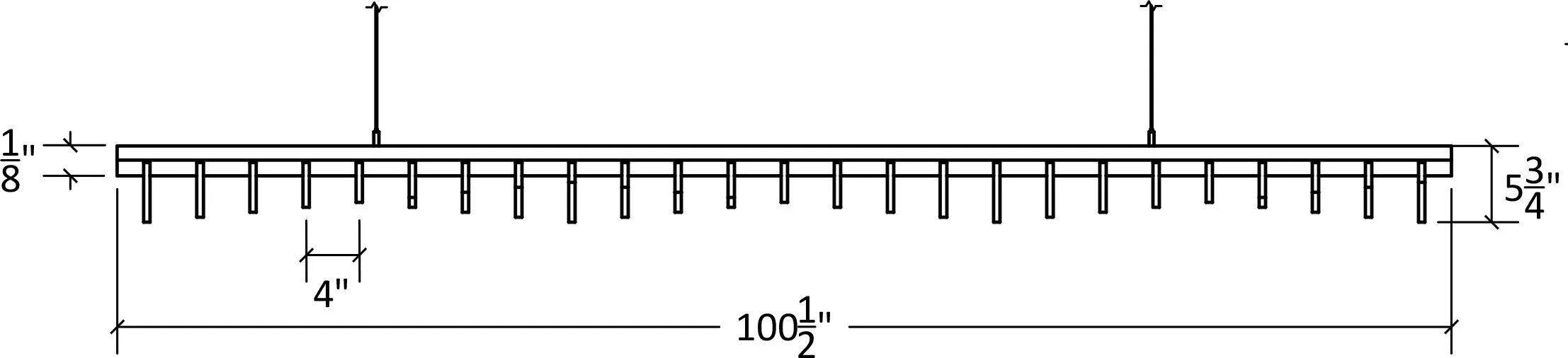

JAGGED GRILLZ SIDE ELEVATION

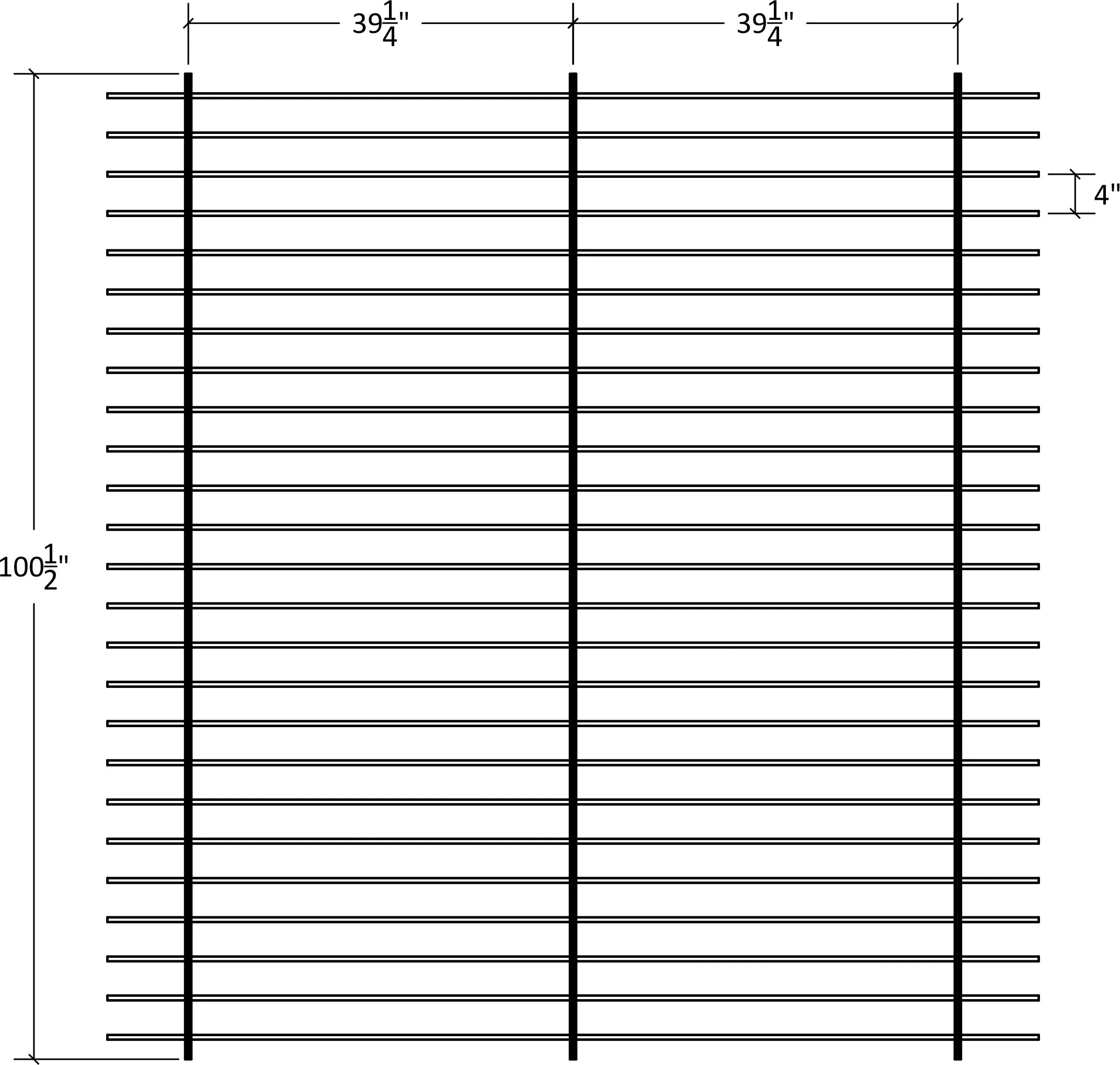

JAGGED GRILLZ PLAN
STANDARD GRILLZ
SERENE GRILLZ
SUSTAINABILITY
Ritz Acoustics manufactures its products from polyester fiber acoustic panels it has sound absorbing, non-toxic, non-allergenic- and non-irritant charastitics It is a good choice for managing echo and creating a durable interior acoustic solution. These Polyester panels are produced from recycled bottles made of PET plastic so we often refer to our material as a PET felt. Due to its recycled nature these products are excellent to meet LEED standards and goals on your construction project.
COLORWAYS
REQUEST A QUOTE
For existing construction projects, or help specifying our products on a new project we are here to help. Please reach out with your needs and goals. We can provide you with the right acoustic solution for your space, quickly and with straightforward pricing. Installation is also available in some regions.
RELATED PRODUCTS

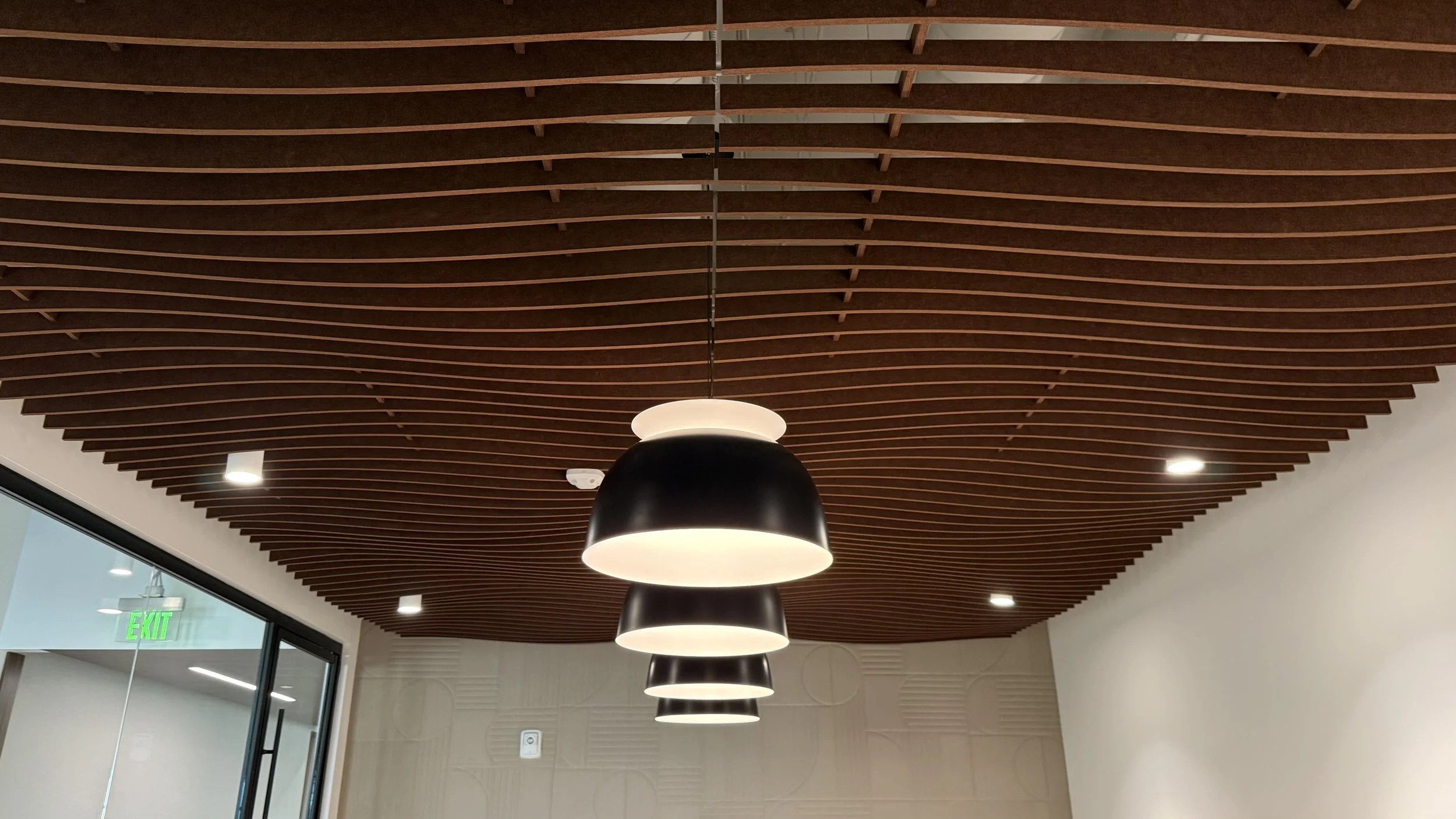

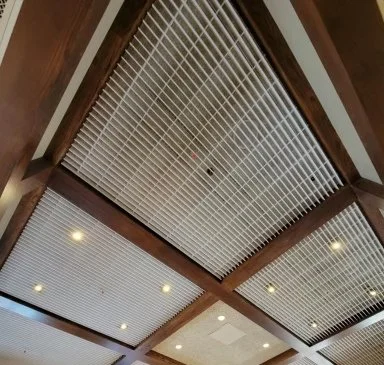

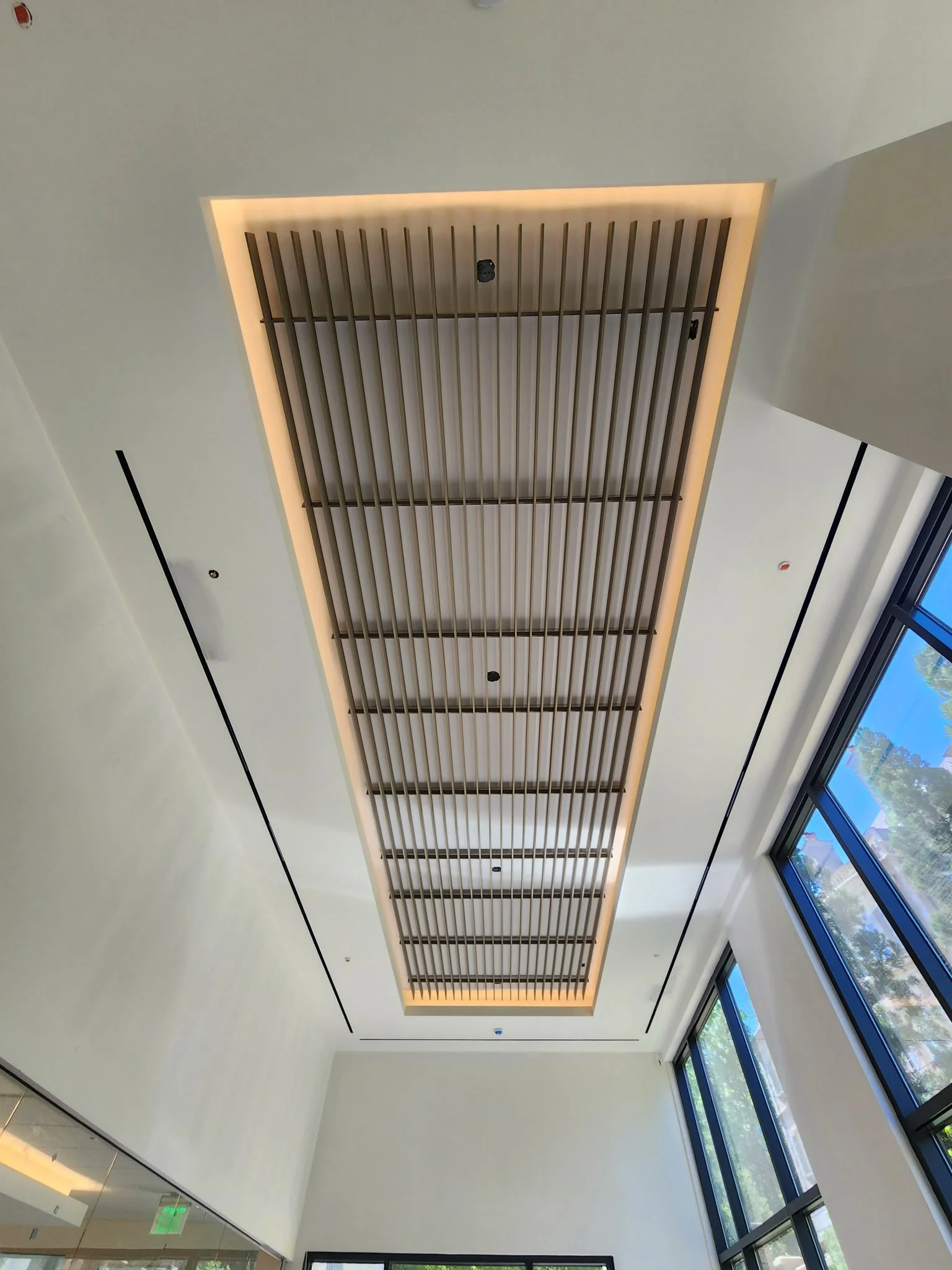

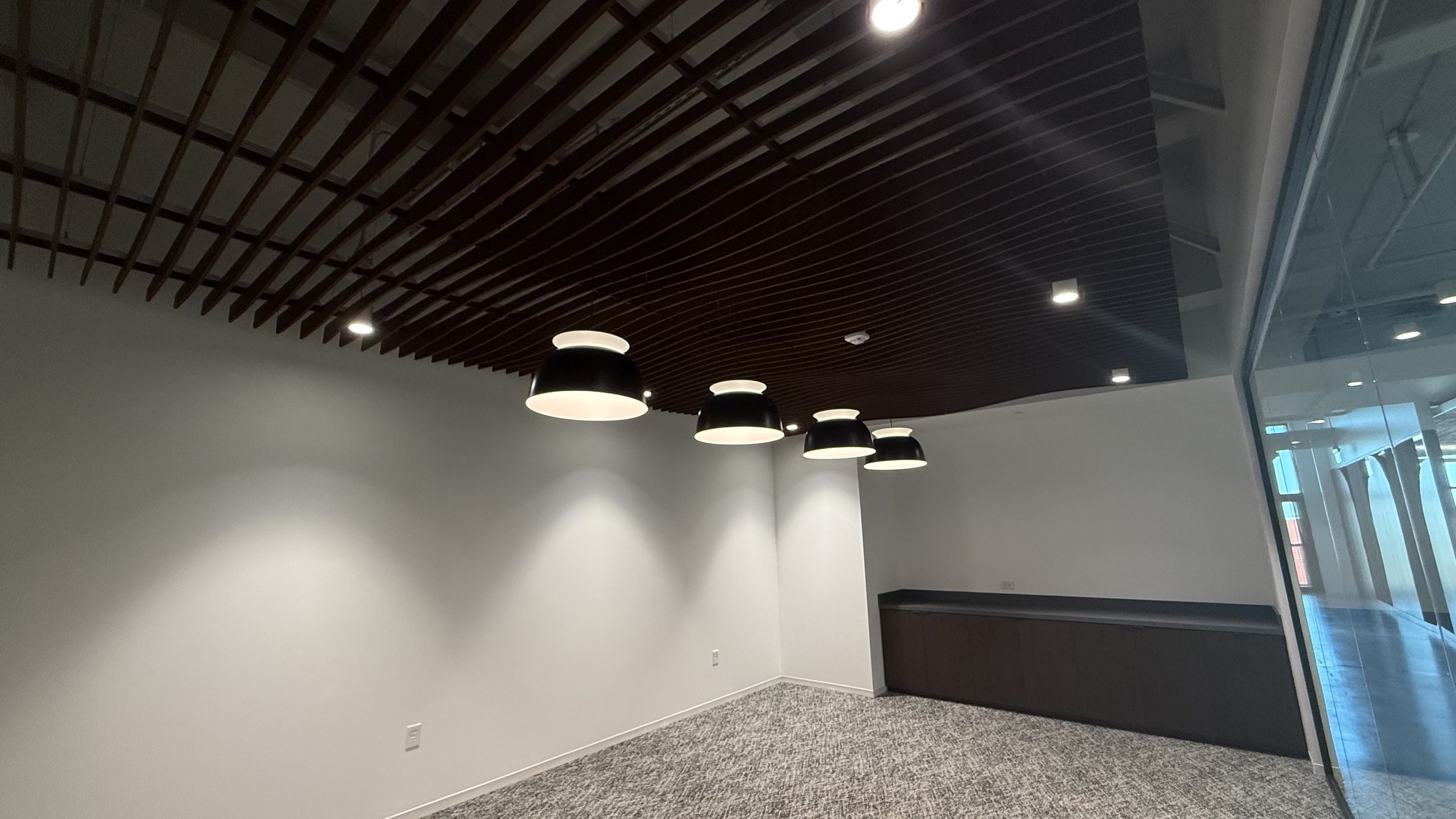

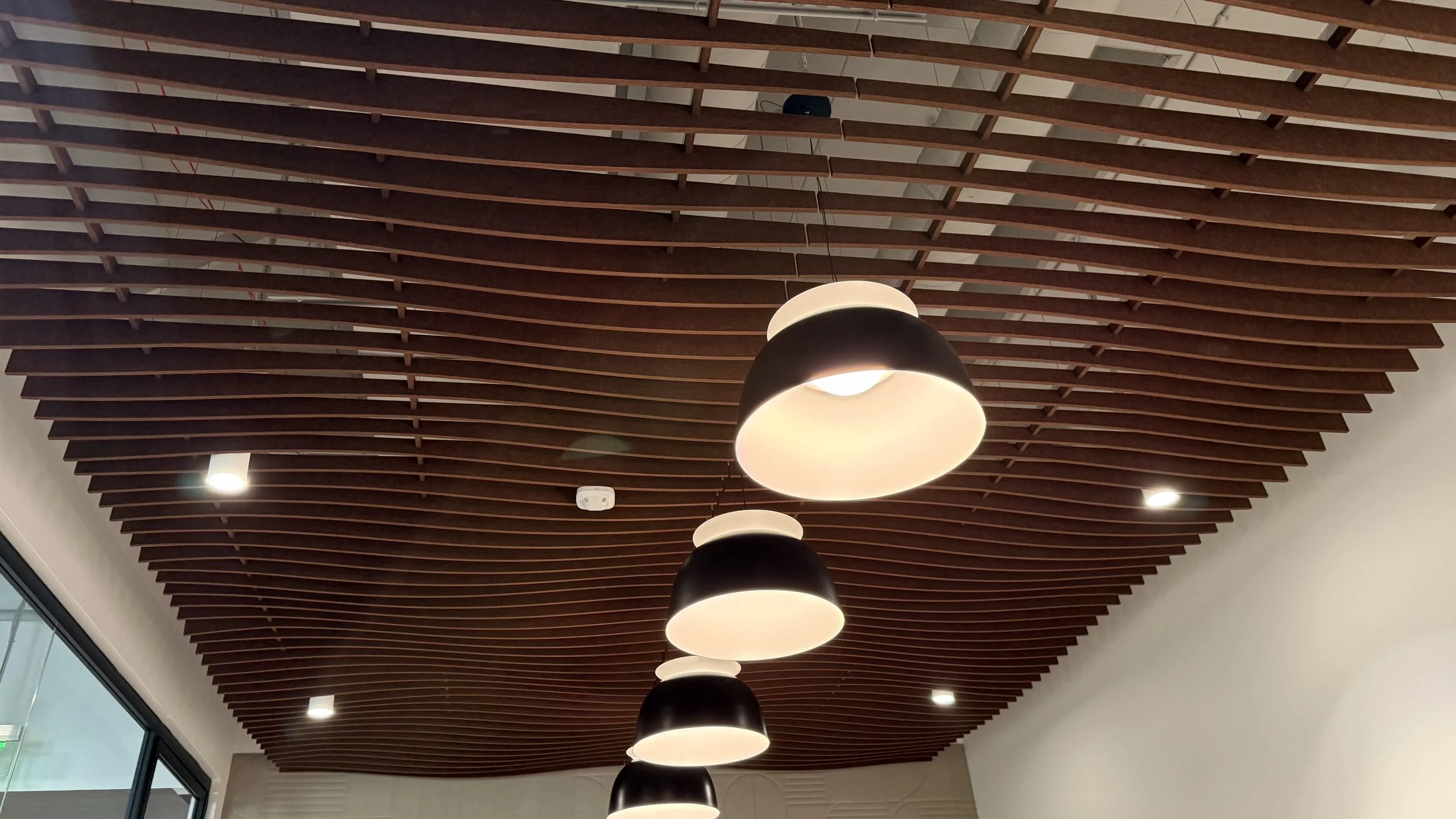

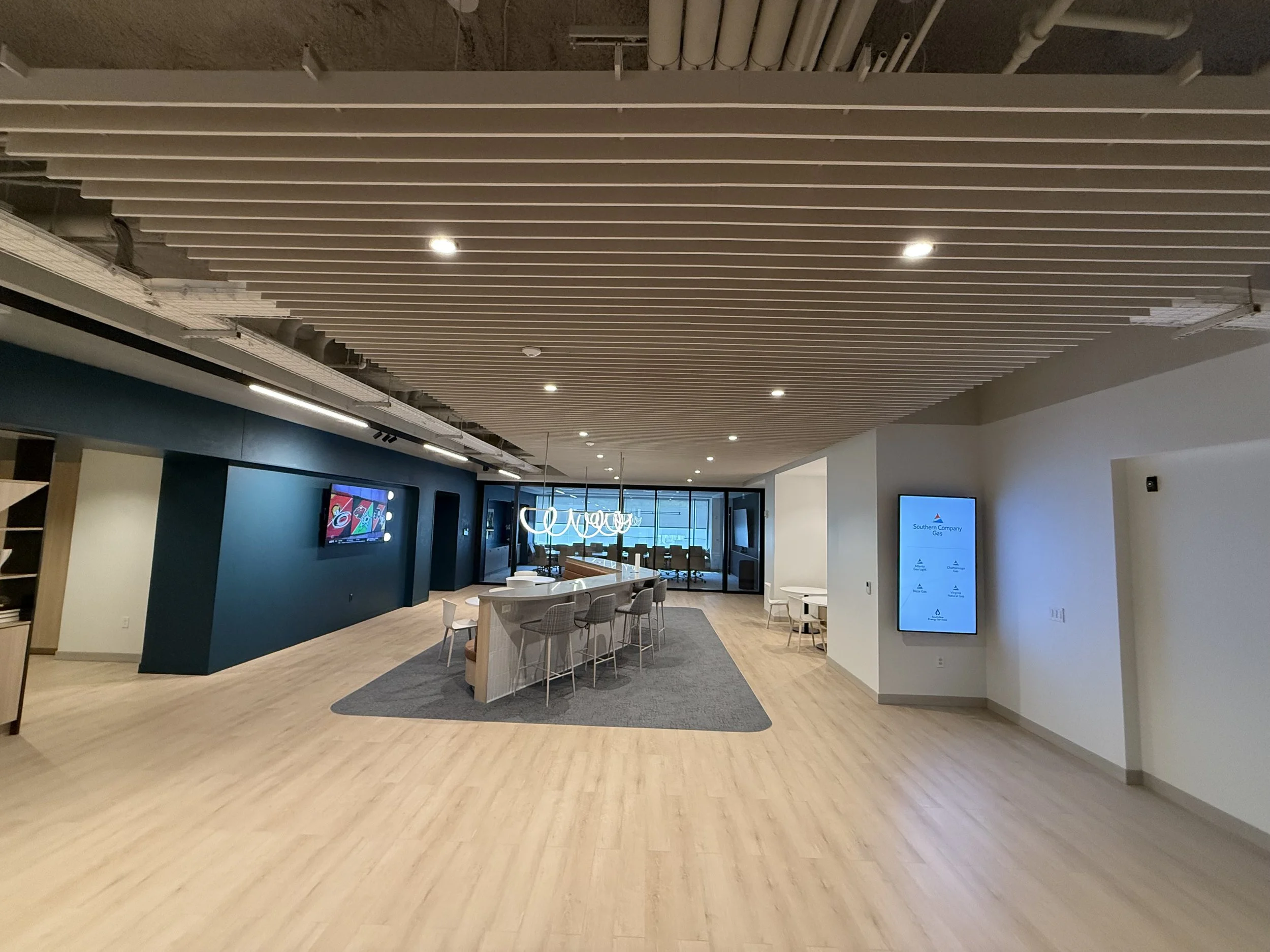

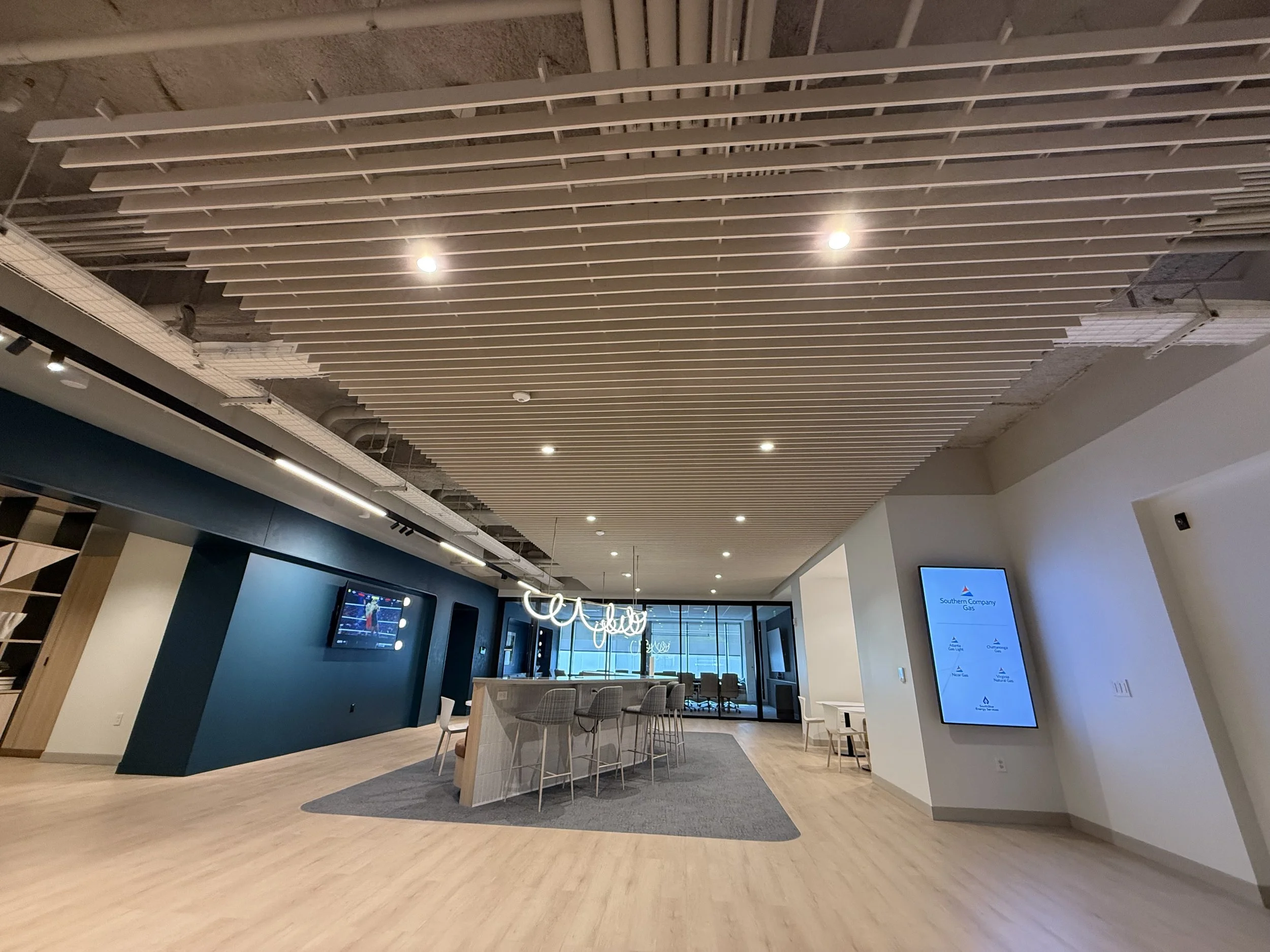

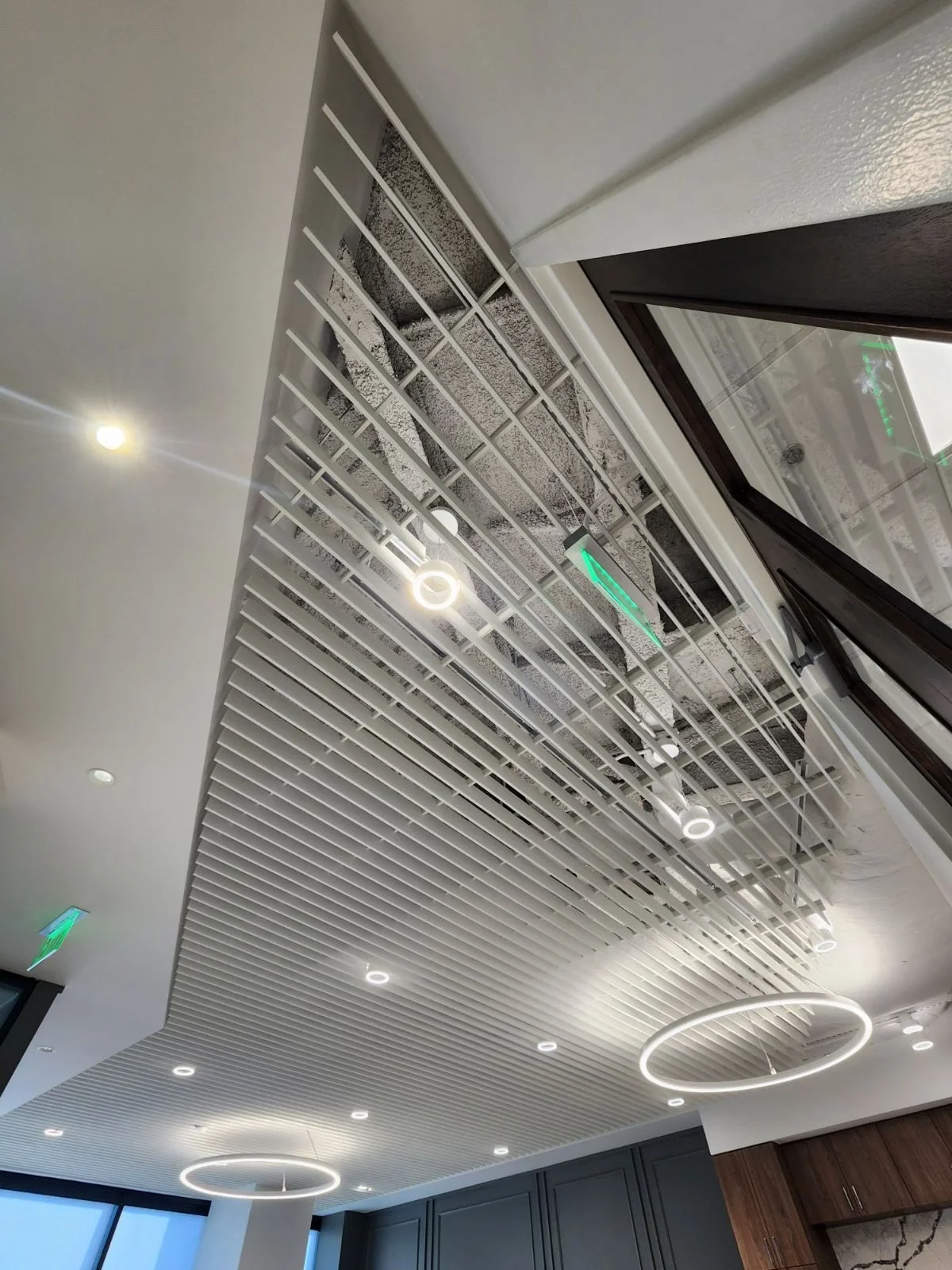

INSTALLATIONS
