LED Beamz Baffles
Light and Silence, Designed as One
LED Beamz unites two ceiling systems that have always been designed separately: lighting and acoustics. Luminous baffles alternate with standard acoustic baffles in a single cohesive ceiling, so the lighting plan and the acoustic plan reinforce each other instead of competing for space.
The LED modules are engineered for quality light — 450 lumens at a wide 146-degree beam angle, fully dimmable, with four color temperatures from warm 3000K to crisp 6500K. A frosted lens diffuses the source into a soft, even glow, and magnetic mounting makes replacement and adjustment tool-free.
Between the luminous blades, the PET acoustic baffles absorb the ambient noise of the open space below. The result is a ceiling that manages both the visual and the sonic environment — brightness where you need it, quiet everywhere else.
For designers tired of coordinating separate lighting and acoustic packages, LED Beamz is a single specification that solves both. One system, one layout, one cohesive ceiling.
Ideal for open offices, conference centers, libraries, educational facilities, and any space where lighting quality and acoustic comfort are equally critical.
LED Specifications
1/2”W, Up to 78” Max Length
146 Degree Beam Angle
Lumens output of 450 LM
Frosted Lens
Color temp options of 6500k, 5300k, 4100K, 3000K
Dimmable
Magnet installation making for easy replacement and adjustment
DOWNLOADS:
PRODUCT DETAILS:
- Acoustical
- Eco friendly
- Class A fire rated
- Impact resistant
- 100% polyester
- Low voc
- Mold and mildew resistant
HOW TO SPECIFY
-
Ritz Acoustics LED Beamz
-
Standard 6”H X 2 1/2”W X Specified Length - 108” Max Length
Custom Sizes Available
-
Baffle Color: Choose from 89 Colorways please refer to our color chart located on this page.
LED Color Temp: 6500K, 5300K, 4100K, or 3,000K -
Our standard mounting method is uni-strut as shown in the details on this page however certain designs and situations would be better suited for an aircraft cable suspension which is also available on request.
NON LED BAFFLE SECTION

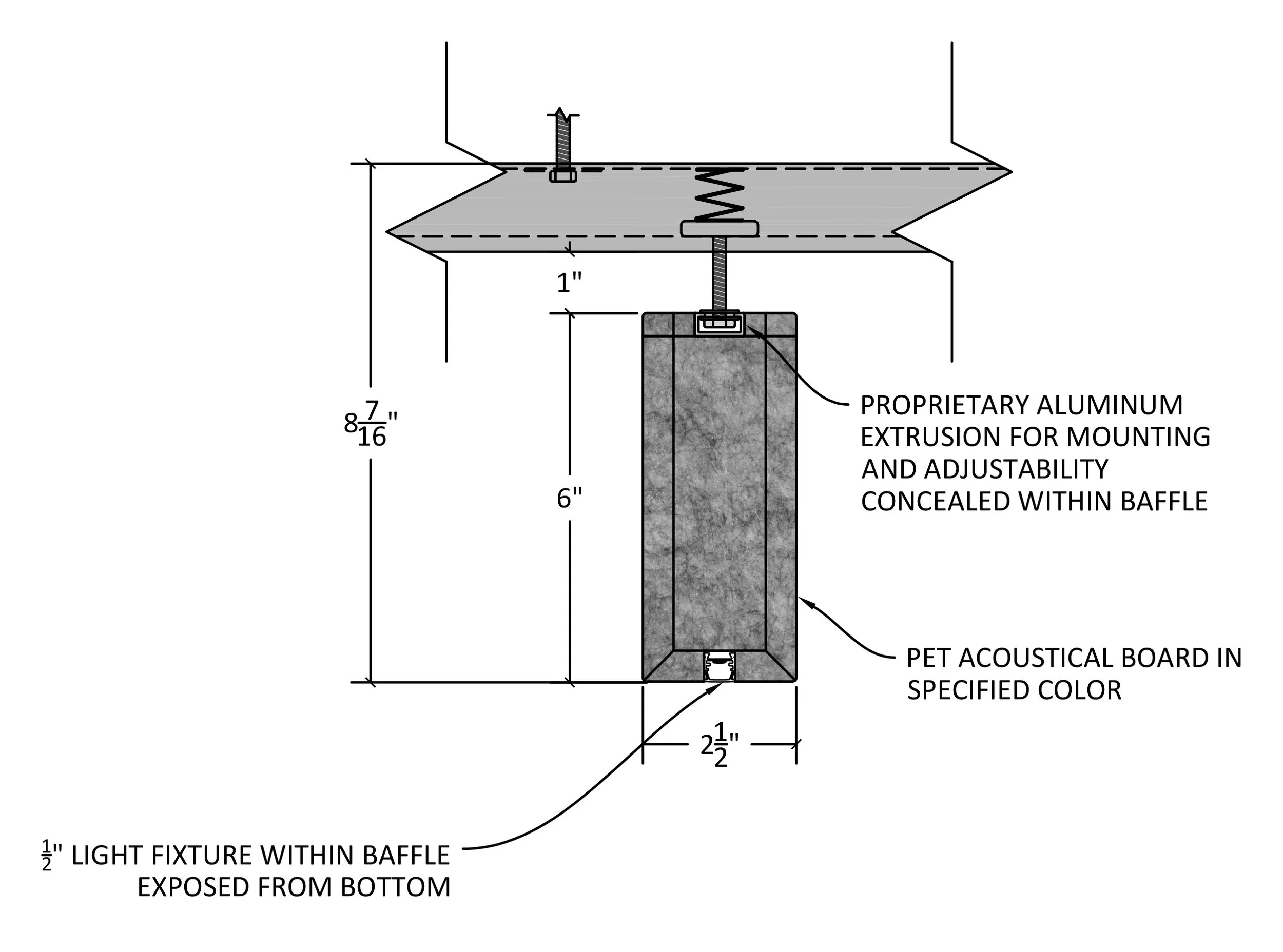

LED BAFFLE SECTION

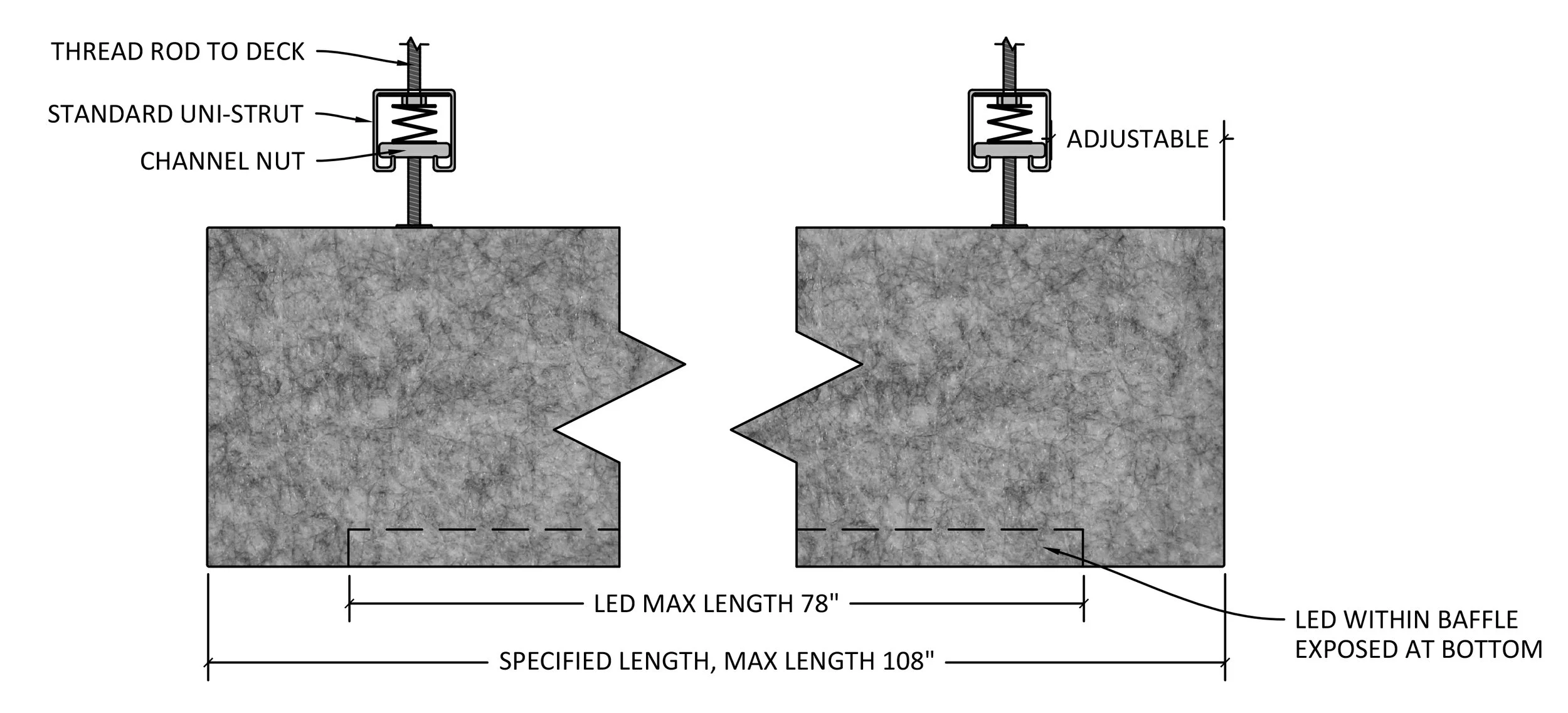

BAFFLE ELEVATION
REQUEST A QUOTE
For existing construction projects, or help specifying our products on a new project we are here to help. Please reach out with your needs and goals. We can provide you with the right acoustic solution for your space, quickly and with straightforward pricing. Installation is also available in some regions.
RELATED PRODUCTS
SLIM BAFFLEZ
V BAFFLEZ
TIMBERZ BAFFLEZ
INSTALLATIONS
SUSTAINABILITY
Ritz Acoustics manufactures its products from polyester fiber acoustic panels it has sound absorbing, non-toxic, non-allergenic- and non-irritant charastitics It is a good choice for managing echo and creating a durable interior acoustic solution. These Polyester panels are produced from recycled bottles made of PET plastic so we often refer to our material as a PET felt. Due to its recycled nature these products are excellent to meet LEED standards and goals on your construction project.
