Ellipse Baffles
Softened Geometry, Two-Tone Expression
Ellipse rounds off the hard edges of the conventional baffle — literally. Rounded ends and a 3mm felt face give this baffle a soft, upholstered presence, bringing a quiet, furniture-like quality to the ceiling plane.
The two-piece construction is Ellipse's signature: a PET core wrapped with a contrasting felt face, opening up two-tone color combinations that turn each baffle into a composed object. Designers can pair bold faces with quiet cores, or keep the palette tonal for subtle depth.
The felt face isn't just visual — the layered construction adds absorptive surface, and the rounded profile diffuses reflections softly rather than returning them. The acoustic result is a gentle, even quieting of the space.
Ellipse brings a hospitality sensibility to commercial acoustics: tailored, tactile, and considered. It's the baffle for interiors where every detail is designed — including the ones overhead.
Ideal for boutique hotels, executive suites, fine dining, conference rooms, and interiors with a crafted, residential sensibility.
DOWNLOADS:
PRODUCT DETAILS:
- Acoustical
-3MM Felt Face
-Two tone options
- Eco friendly
- Class A fire rated
- Impact resistant
- 100% polyester
- Low voc
- Mold and mildew resistant
HOW TO SPECIFY
-
Ritz Acoustics Ellipse Baffles
-
Standard 8 -3/16”H X 2-1/8”W X Specified Length 95-1/4” Max Length
Custom Sizes Available
-
Choose from 77 12mm felt core colorways and 28 3mm felt face colorways please refer to our color chart located on this page.
-
Our standard mounting method for Ellipse baffles is aircraft cable mount

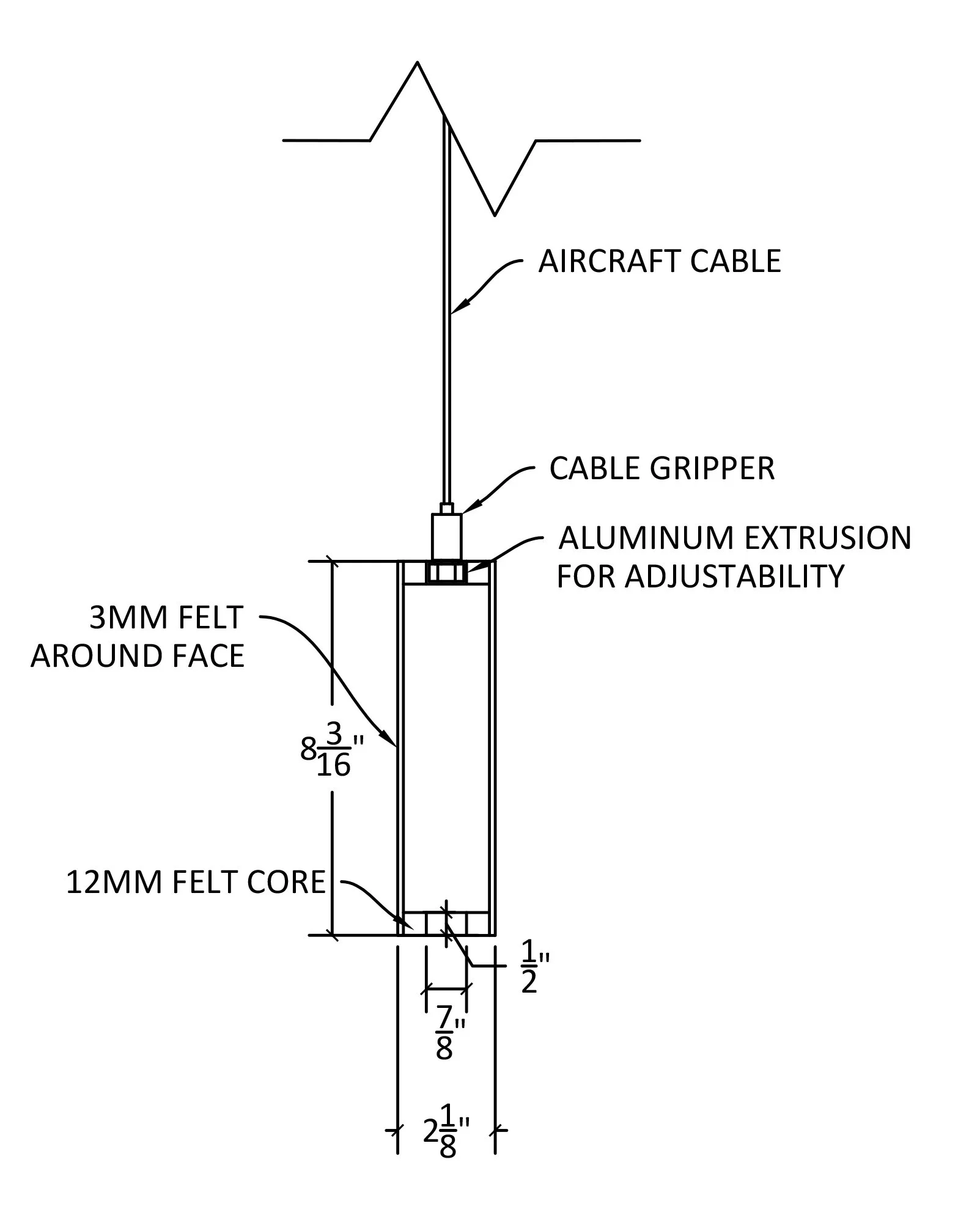

U BEAMZ BAFFLE SECTION
ELLIPSE BAFFLE TOP
ELLIPSE BAFFLE ELEVATION
ELLIPSE BAFFLE BOTTOM
REQUEST A QUOTE
For existing construction projects, or help specifying our products on a new project we are here to help. Please reach out with your needs and goals. We can provide you with the right acoustic solution for your space, quickly and with straightforward pricing. Installation is also available in some regions.

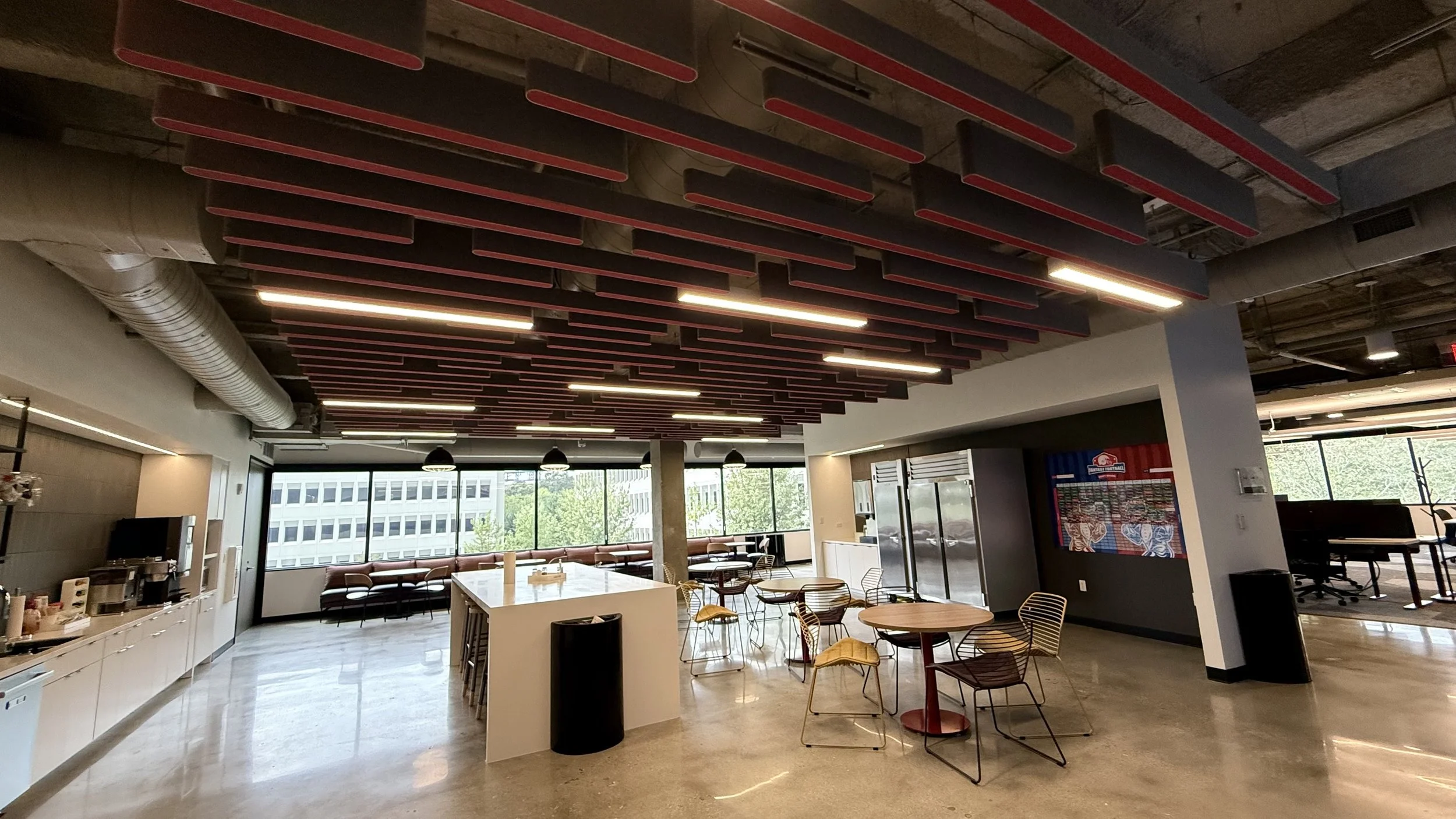

INSTALLATIONS
SUSTAINABILITY
Ritz Acoustics manufactures its products from polyester fiber acoustic panels it has sound absorbing, non-toxic, non-allergenic- and non-irritant charastitics It is a good choice for managing echo and creating a durable interior acoustic solution. These Polyester panels are produced from recycled bottles made of PET plastic so we often refer to our material as a PET felt. Due to its recycled nature these products are excellent to meet LEED standards and goals on your construction project.
